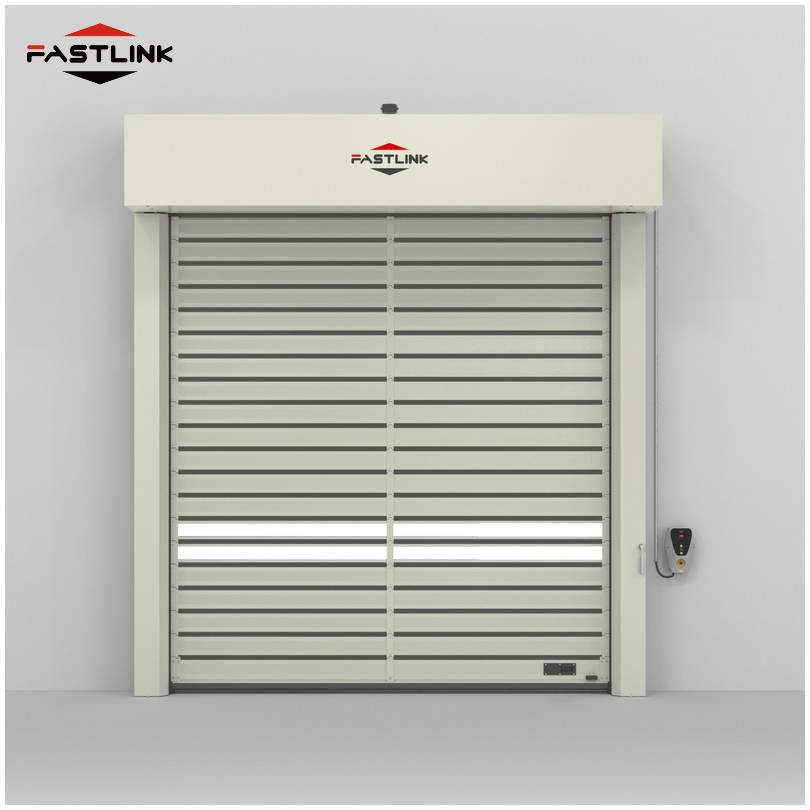

Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
1 / 5
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors
Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors

Fastlink Customized High Performance Large Industrial PU Rapid Intelligent Aluminum High Speed Spiral Shutter Doors

Customization: Available
After-sales Service: 2 Years
Warranty: 1 Year
Send Inquiry

Product Description

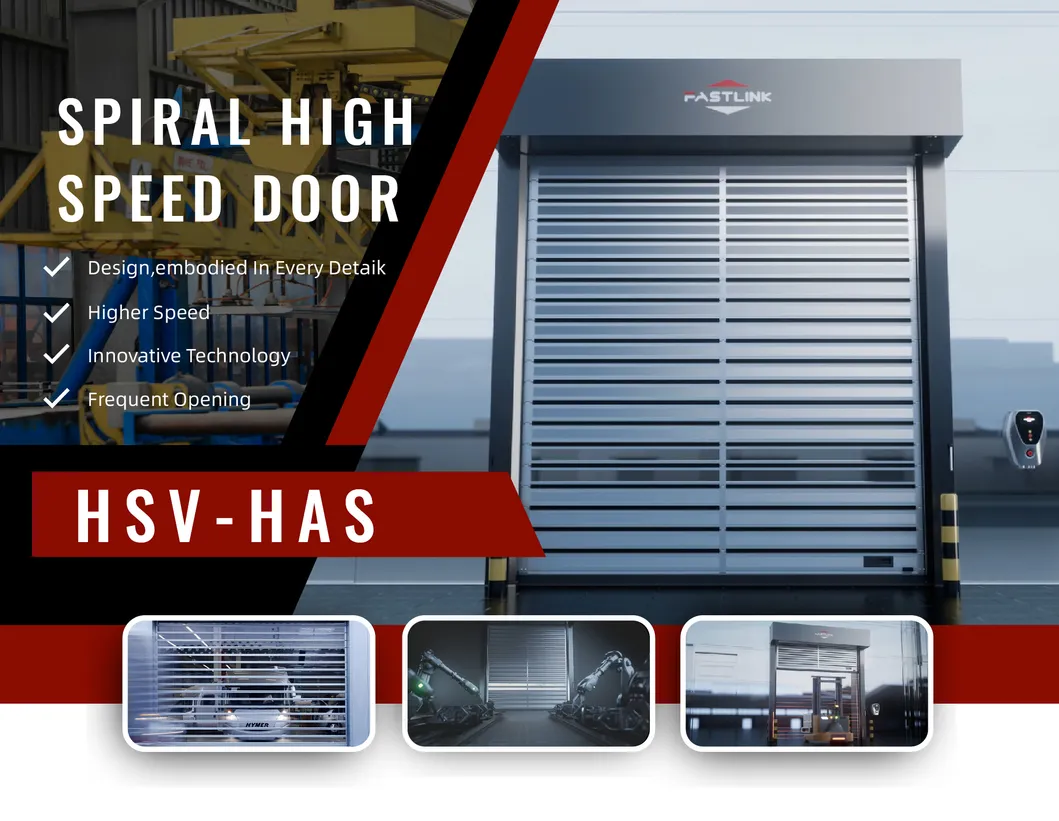

High Speed Spiral Door
i

Basic Specifications

Model:HSV-HAS
Material:Aluminum Alloy
Door Panel:Polyurethane Sandwich (42mm)
Operation:Electric Servo Motor
Max Size:W8000mm * H9000mm
Opening Speed:Up to 2.5m/s
Wind Resistance:1500PA~3000PA
Control:Remote / Intelligent System
Safety:CE Certified / Proximity Sensor
Thermal K:1.1W/(m². K)
★

Technical Attributes

Category Performance Details
Door Panel Height220mm
Surface FinishingMetal Surface Reinforcement
Water TightnessLevel 6 (GB/T 7106-2019)
Air TightnessLevel 8 (GB/T 7106-2019)
Balanced SystemCounterweight (Standard) / Tension Spring (Custom)
Opening TypeElectric with Remote Control
Color OptionsRAL9002/RAL9006/RAL1021 / Grey / Red / Champagne

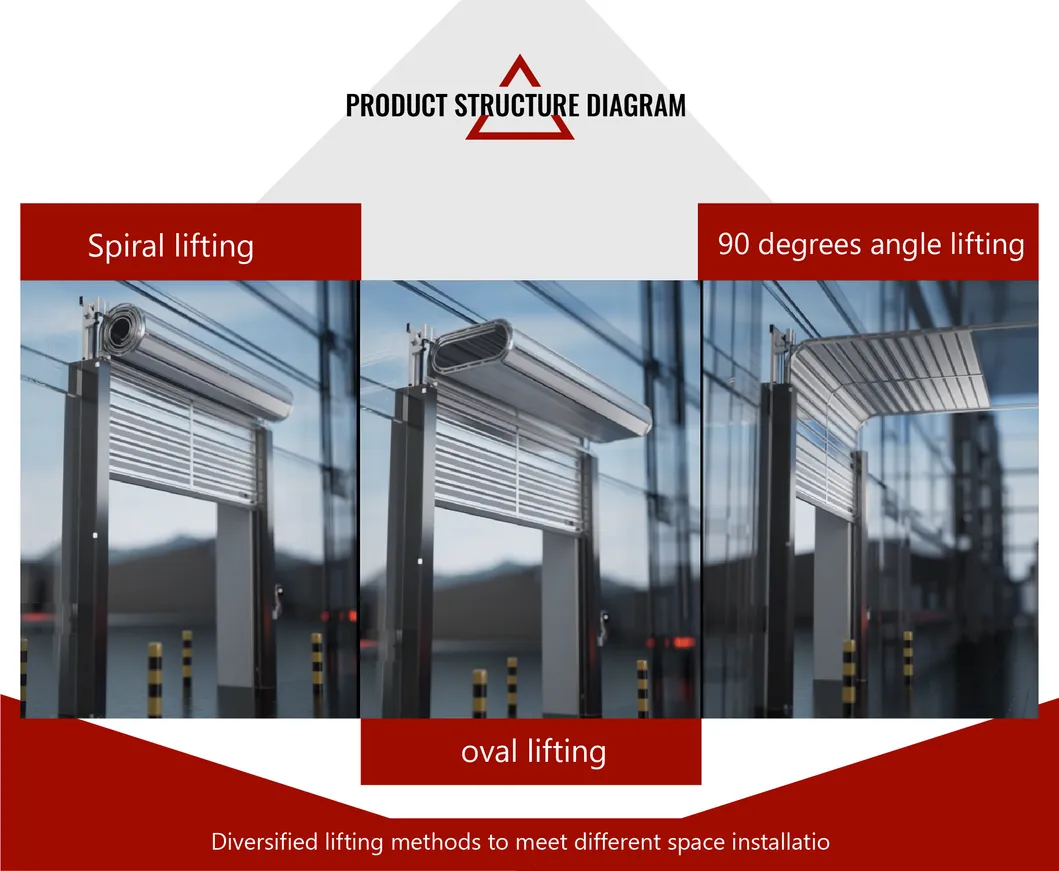

Lifting MethodsSpiral lift / Oval lift / 90 degree right angle lift
✔

Security & Advanced Features

  • Safety Rebound: The bottom of the door rebounds when encountering obstacles via proximity sensors.
  • Intelligent Control: Fault code display, operation status, and fire linkage support.
  • Emergency Operation: Includes an emergency manual opening device and optional UPS.
  • Security Config: Safety Optoelectronics and optional Safety light curtain.
  • Durability: German Bayer Hennecke imported fully automatic door panel production line.
P

Packaging & Delivery

Package Size:464.80cm * 104.80cm * 106.40cm
Gross Weight:580.00kg
Lead Time:30 days
Capacity:500 sets / Month
G

Product Gallery

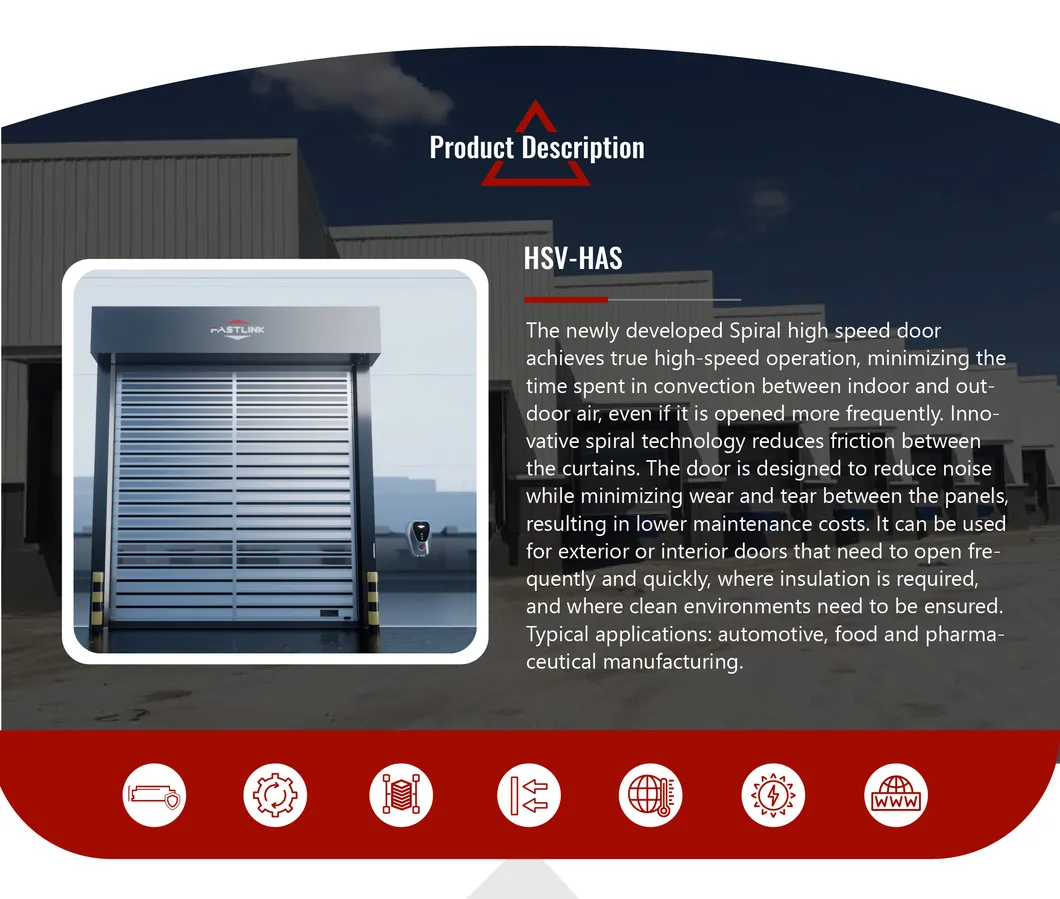

Spiral Door Detail 1

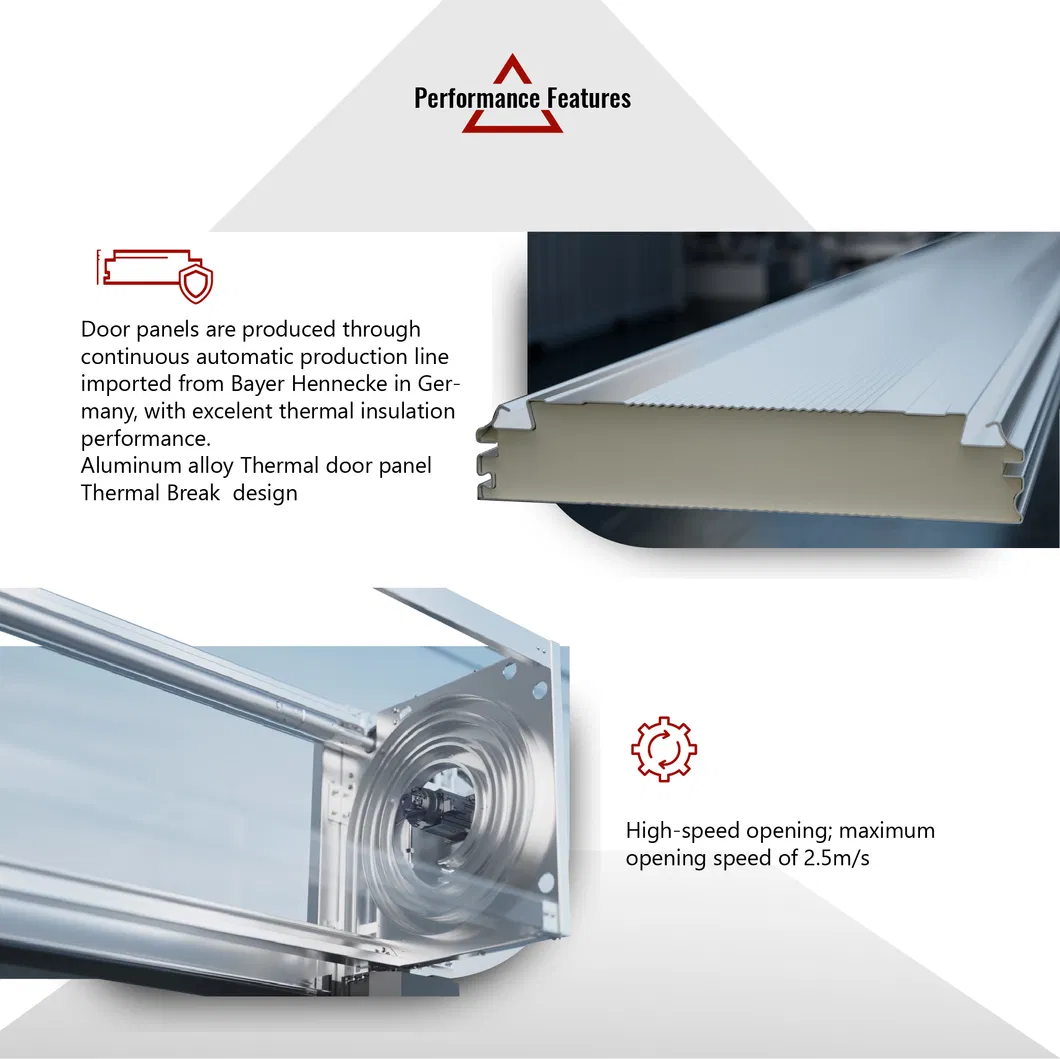

Spiral Door Detail 2

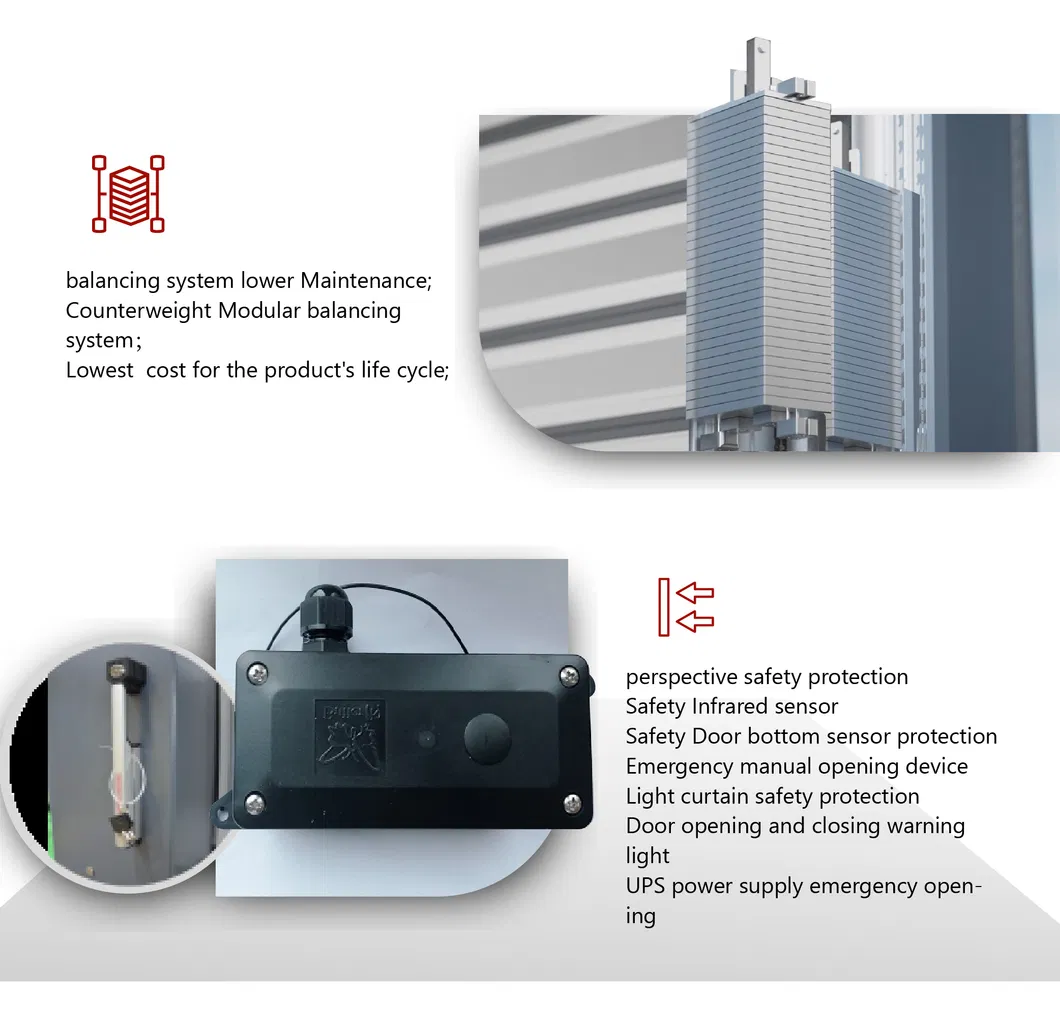

Spiral Door Detail 3

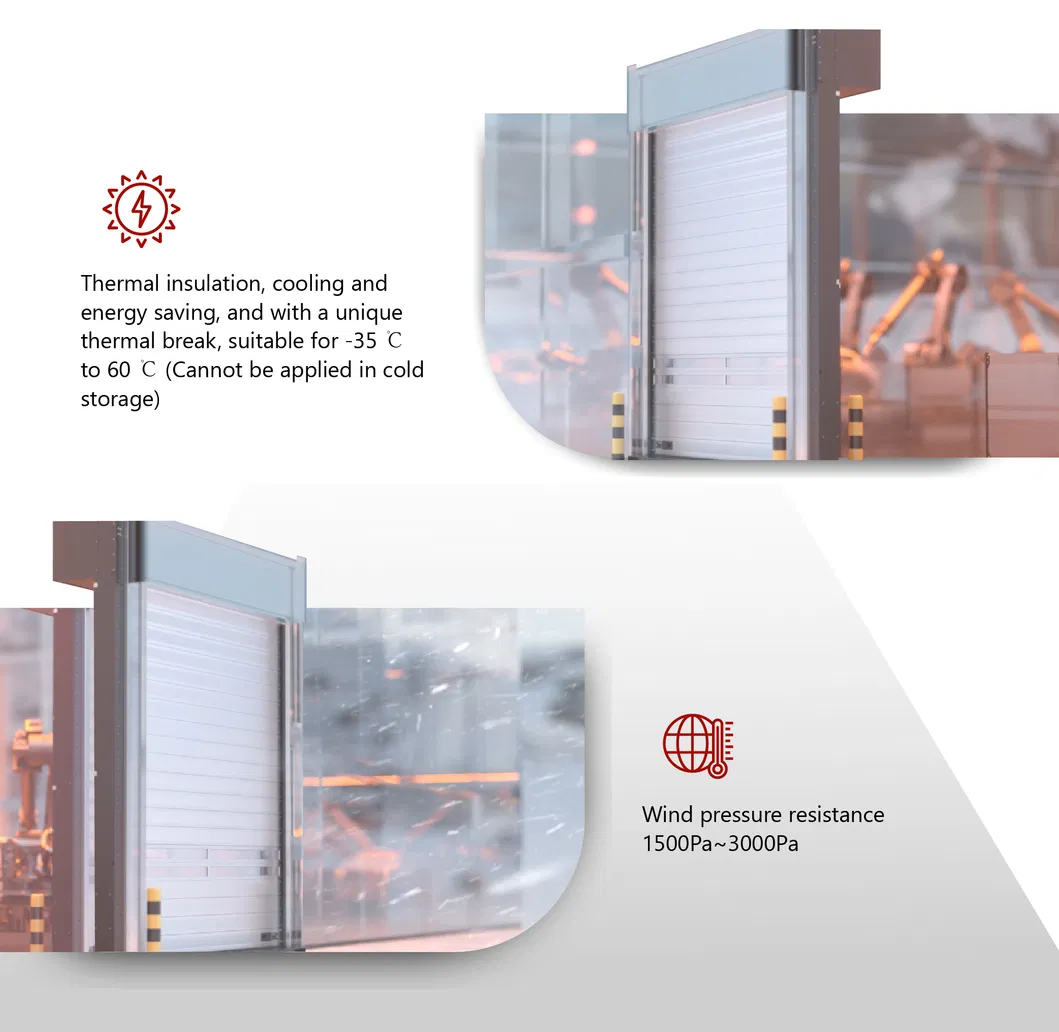

Spiral Door Detail 4
Spiral Door Detail 5

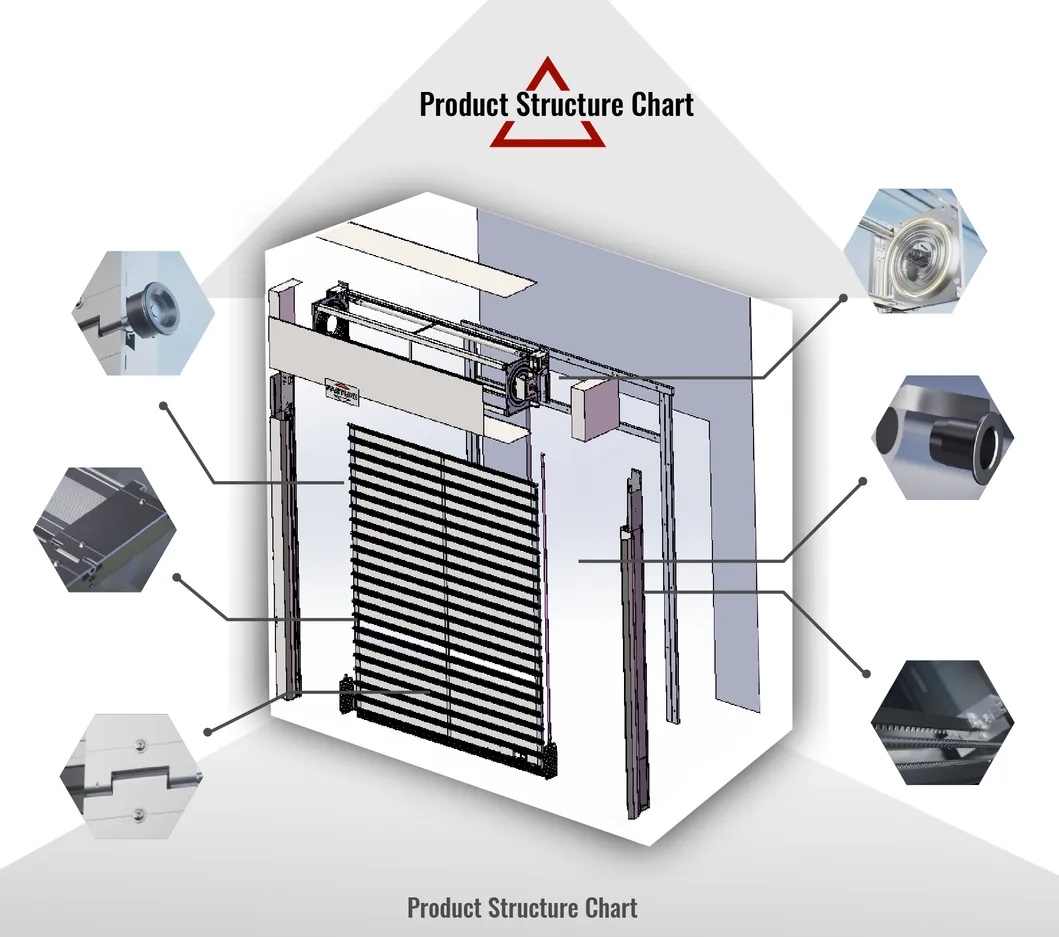

Spiral Door Detail 6

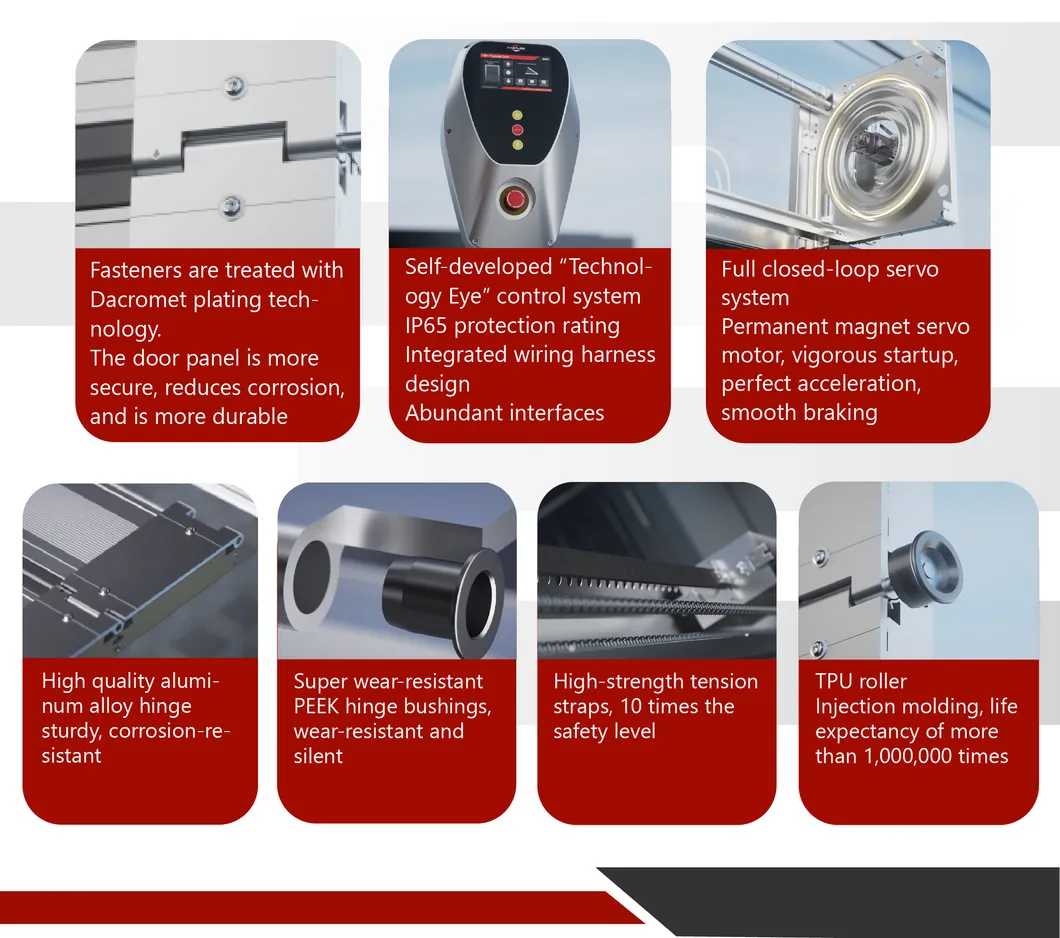

Spiral Door Detail 7
Spiral Door Detail 8

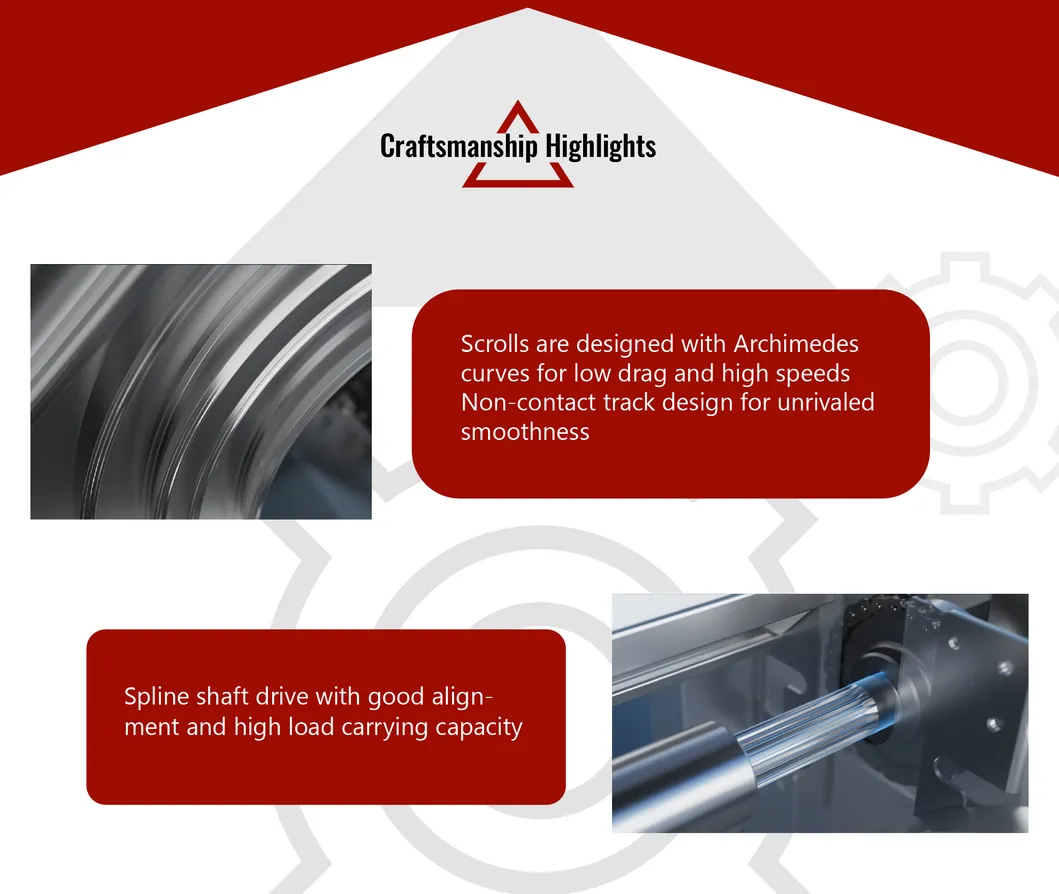

Spiral Door Detail 9

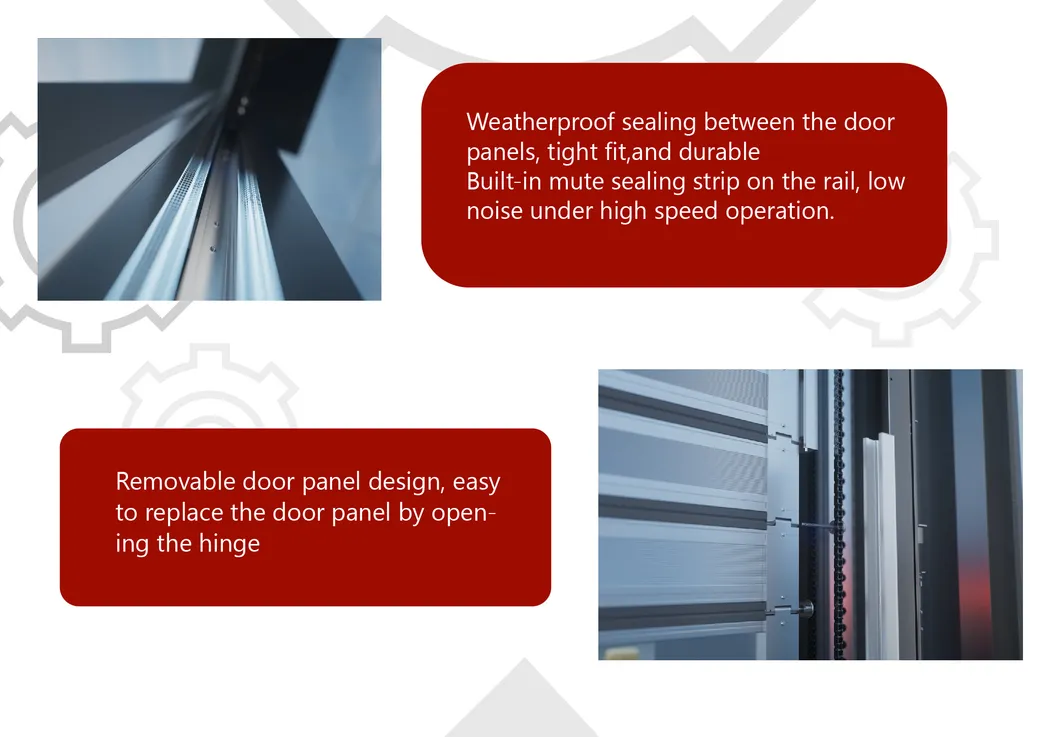

Installation Guide

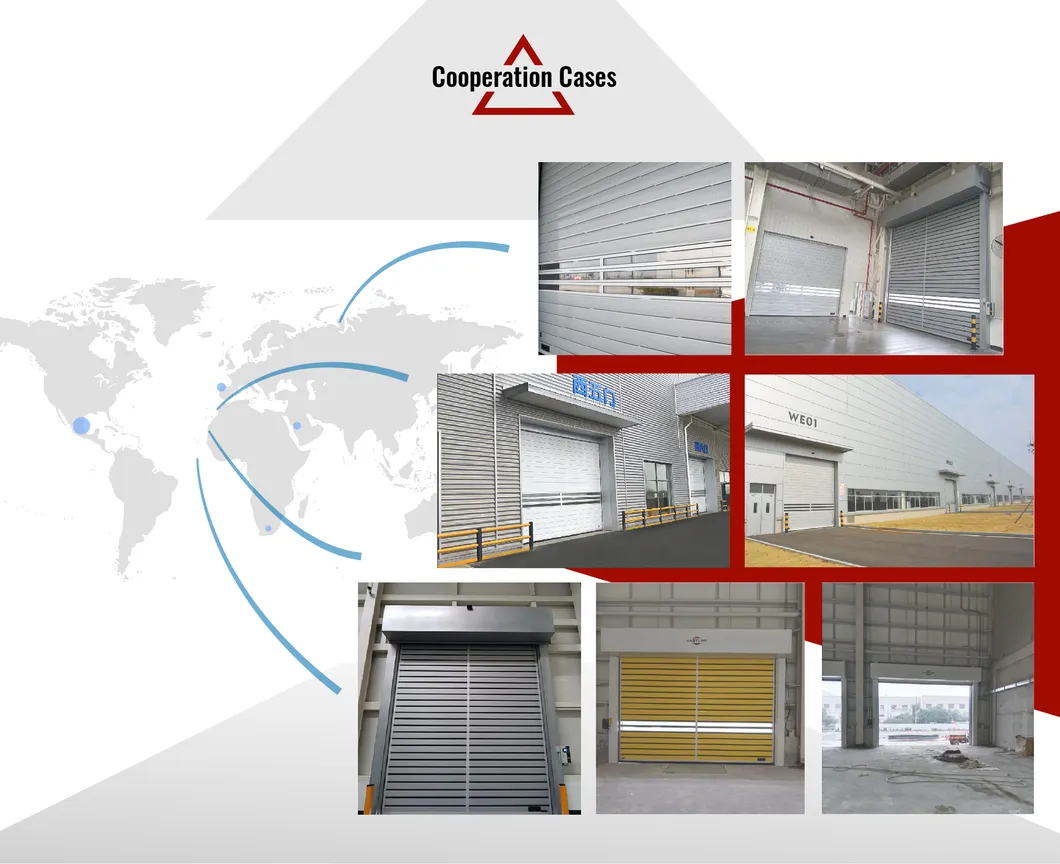

Maintenance Details
?

FAQ - Frequently Asked Questions

How much installation space needs to be reserved above the doorway?
A minimum space of 1000mm is required to be reserved above the doorway for installation.
Can it withstand typhoons?
Yes. The spiral high-speed door features a unique door panel structure and hinge design. Frontal pressure of 700pa will not have any impact on the door.
Can spiral high-speed doors be used in garages?
Absolutely. They are widely used in civil and commercial garages. They can be controlled remotely by remote control or mobile APP for maximum convenience.
Is this door convenient to operate?
Yes, it is designed with modular integrated circuits. The control box features simple on/off/stop push buttons that are very easy to manipulate.
How often do spiral high-speed doors need to be maintained?
They use a counterweight balancing system and do not require major maintenance for up to 1 million uses. However, a maintenance check once a year or every 200,000 times is recommended for optimal performance.
What are the main insulation and sealing properties?
The door has a heat transfer coefficient of K=1.1W/(m². K), Level 6 water tightness, and Level 8 air tightness.
