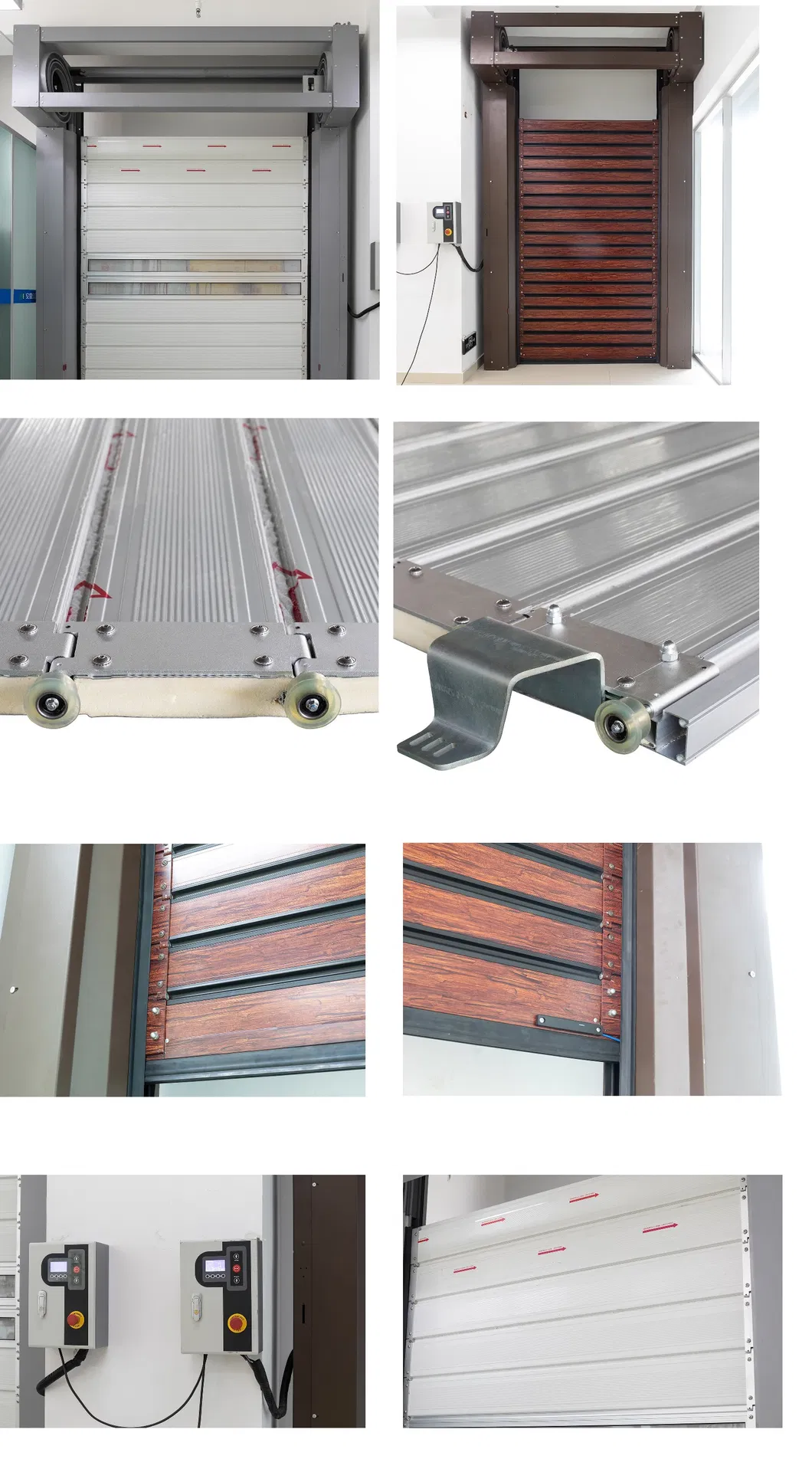

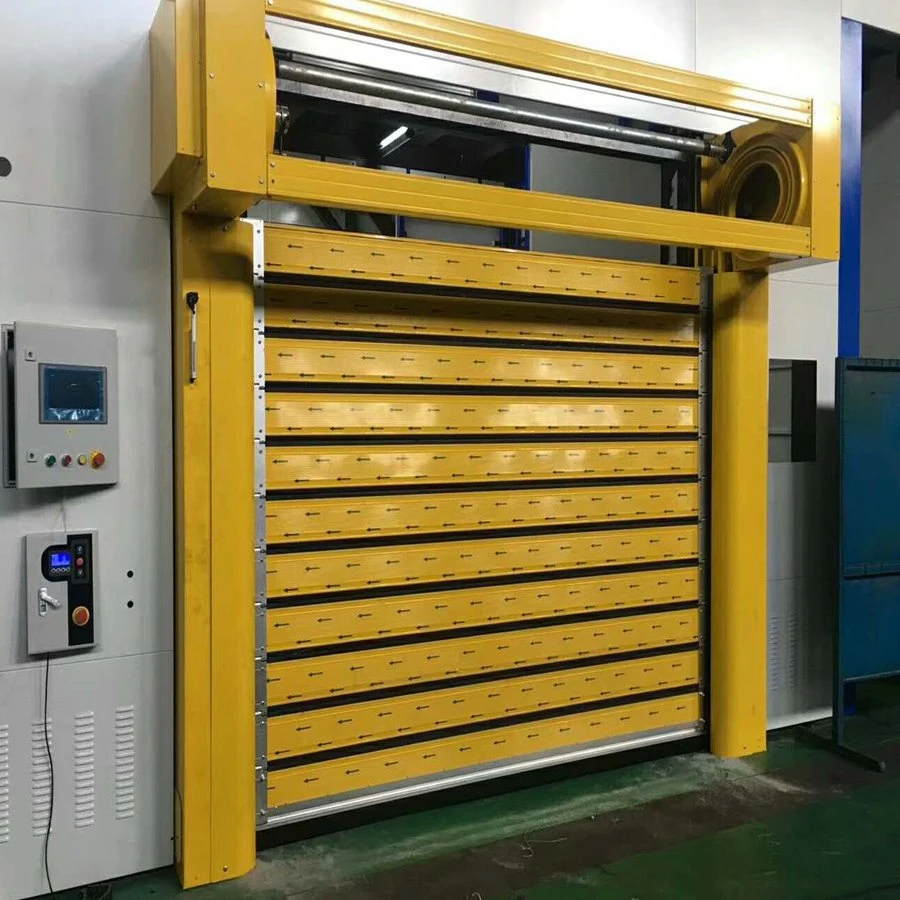

New anti-pinch broken bridge foam door panel: The door panel adopts the new anti-pinch broken bridge foaming technology, which makes the door body light and easy to install. It has improved in heat preservation and operation.

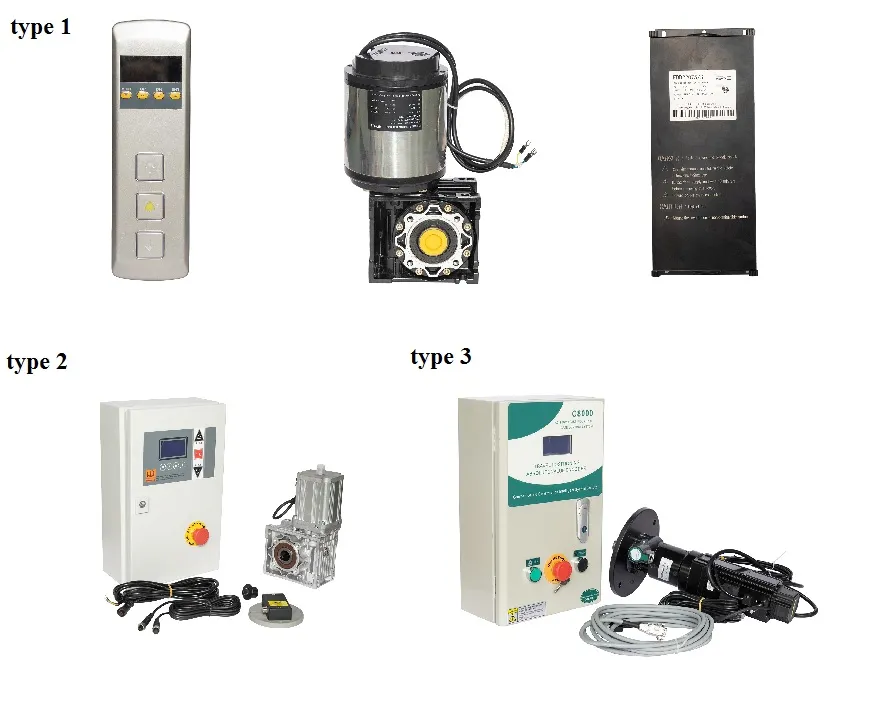

The running track can be single spiral, double spiral, elliptical, smooth, straight, and special-shaped series. The track can be designed according to the size of your door opening space. The motor can be built-in coaxial and side-mounted.
The new anti-pinch broken bridge foam door panel technology is an upgrade of the hard fast door plate. Traditional door panels can suffer from cold bridges leading to ice or frost; this new solution greatly improves the overall life of the door. Opening modes include Bluetooth, geomagnetic, swipe, radar, fingerprint password, and manual button. Equipped with anti-blocking light, infrared photoelectric, airbag, and other security systems.
| Max. Width | 10000mm |
| Max. Height | 7500mm |
| Max. Opening Speed | 2.5m/sec |
| Max. Closing Speed | 0.8m/sec |
| Material | 0.8mm aluminum alloy with PU-foamed |
| Resistance to wind load | Class 4 ~ 130km/h |
| Thermal insulation | UD=1.95W/(M²K) |

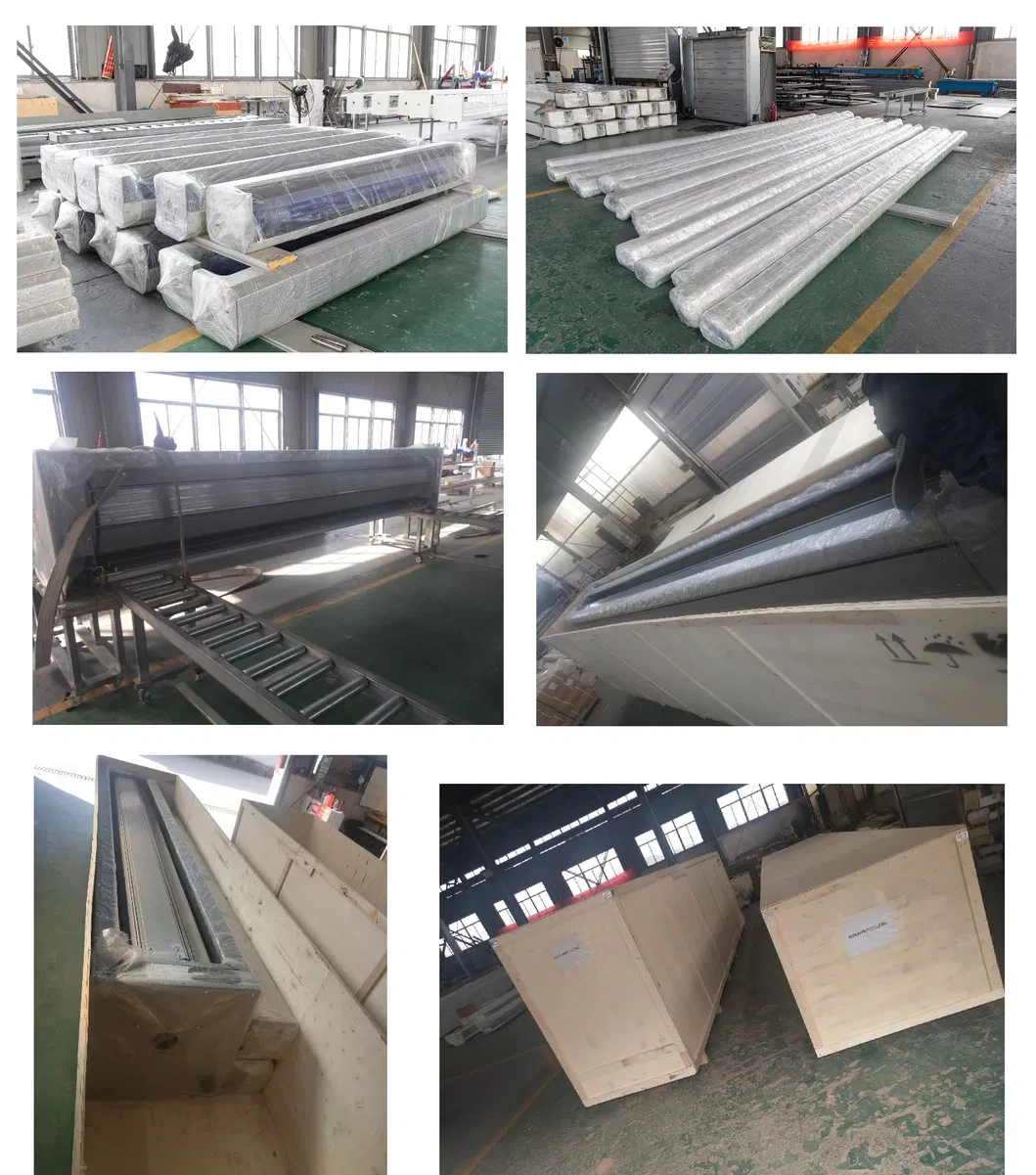

We provide two types of packaging: PE film for long panels (Full Container Load) and robust wooden box packaging for complete sets (LCL or FCL).
