Basic Specifications
Special Function:
Security
Certification:
ISO9001, CE
Power Supply:
1-Phase 220V or 3 Phase 380V, 50/60Hz
Curtain Thickness:
0.8-1.5 mm
Working Temp:
-35 to 65 Celsius Degree
Packaging & Delivery
Package Size:
300.00cm * 80.00cm * 80.00cm

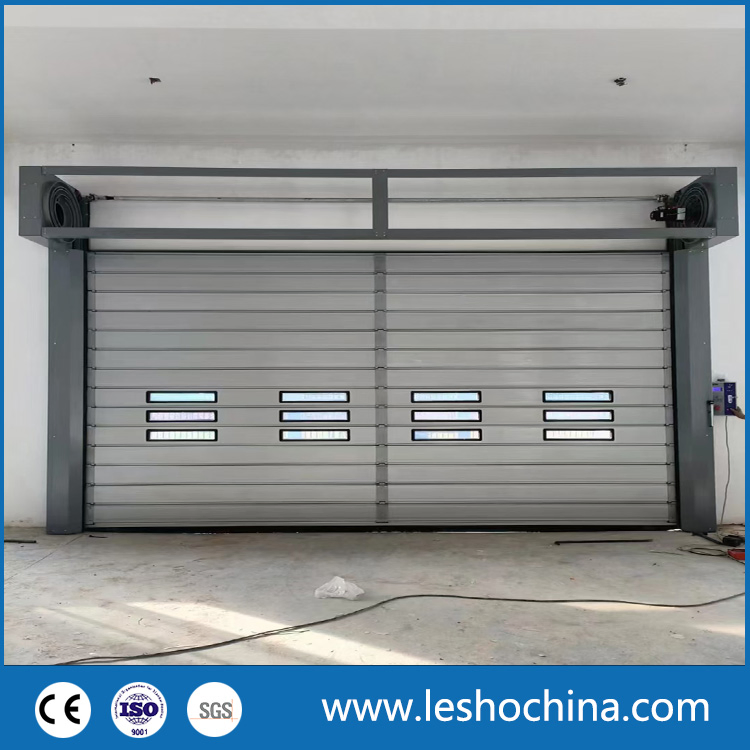

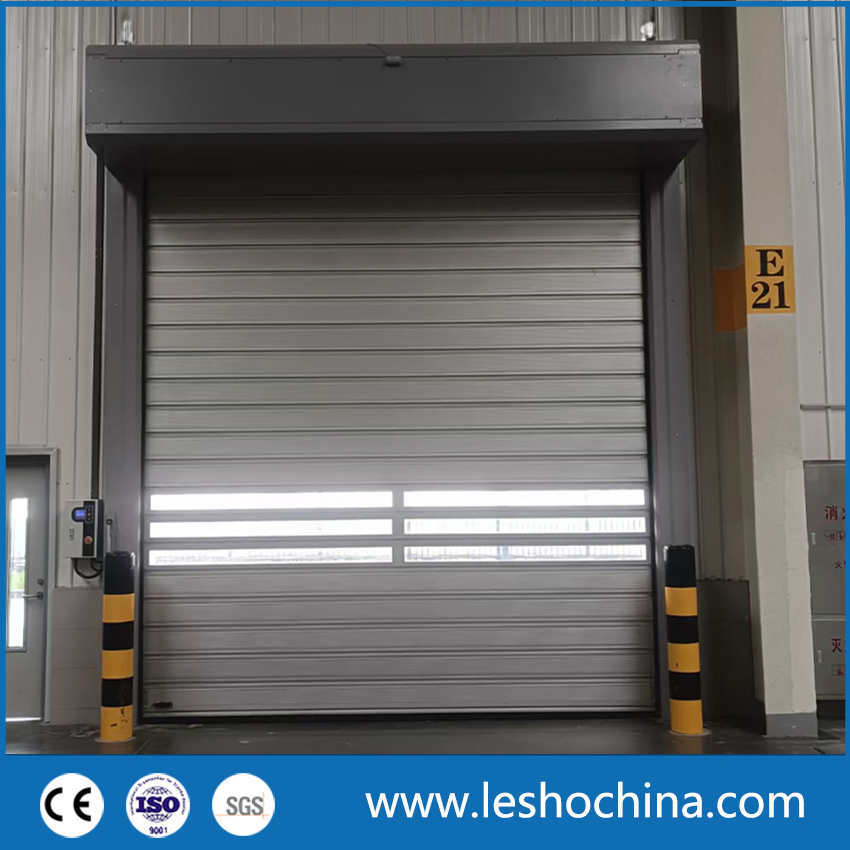

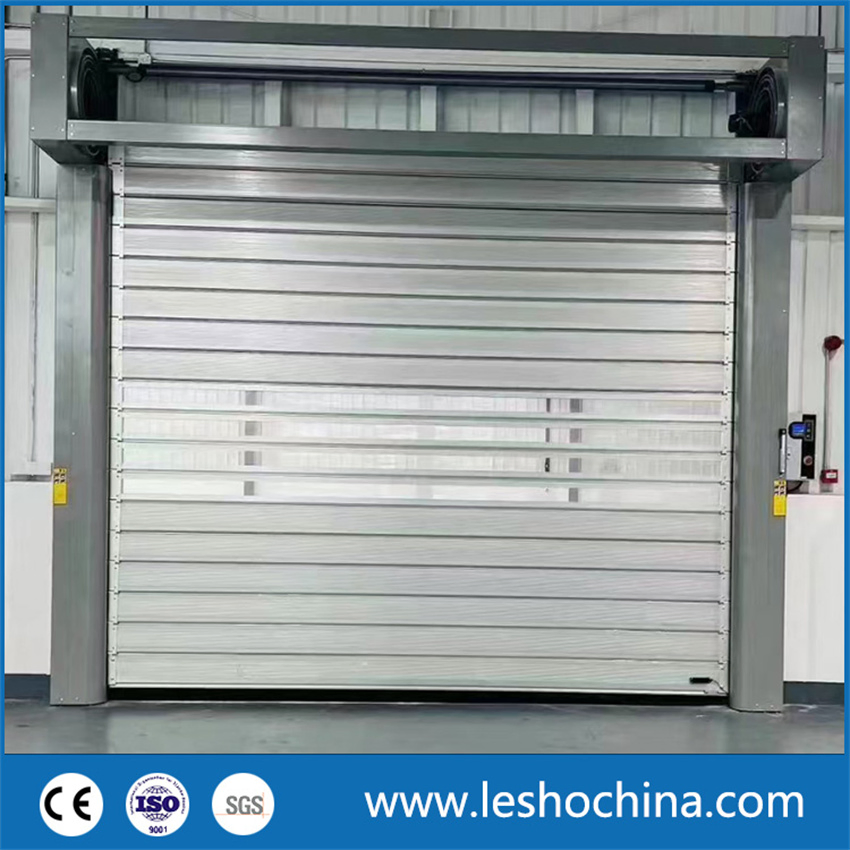

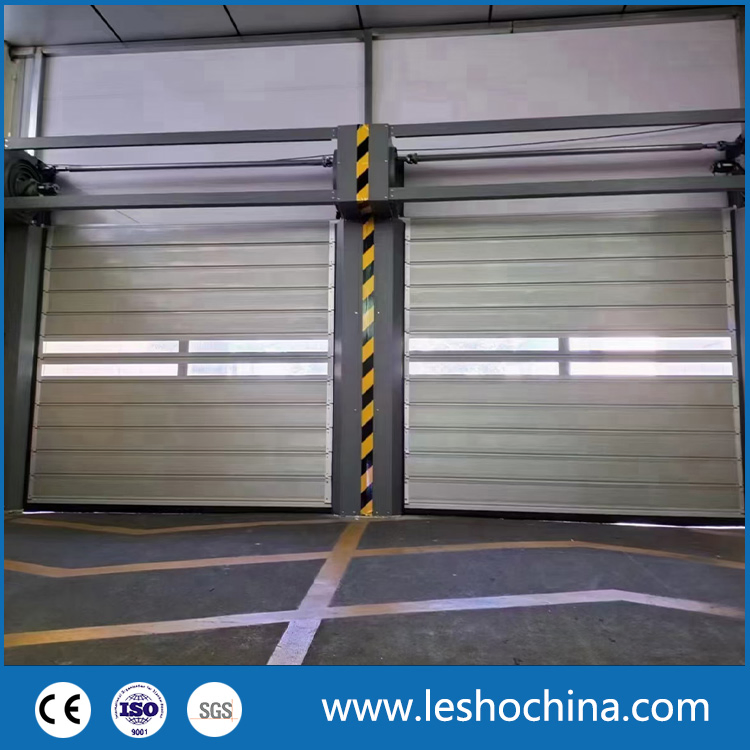

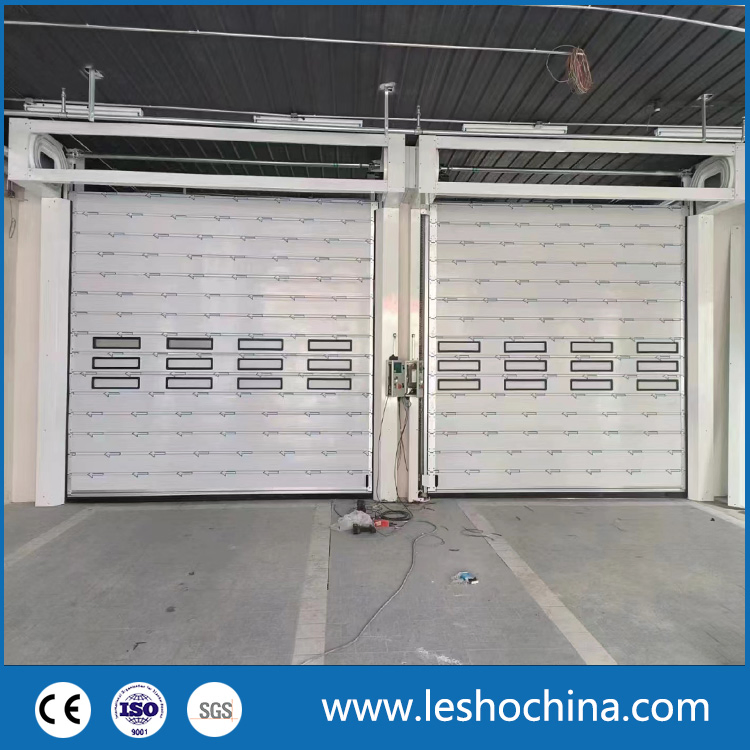

Aluminum Alloy Spiral High Speed Door
◈
Application: A model of Rapid Doors with thermal insulated aluminum slats. Most advanced and high-oriented model fit for areas with high demand of security, strength, thermal insulation, and high running speed.
| Wind resistance | Beaufort scale 12 (35m/s) |
| Max opening speed | 2.0m/s |
| Max closing speed | 1.0m/s |
| Sound insulation | R=25dB |
| Thermal conductivity | 1.9W/(m²·K) |
| Service Life | 20 years |

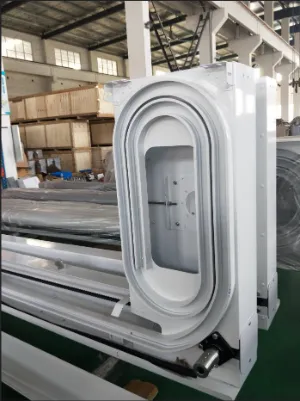

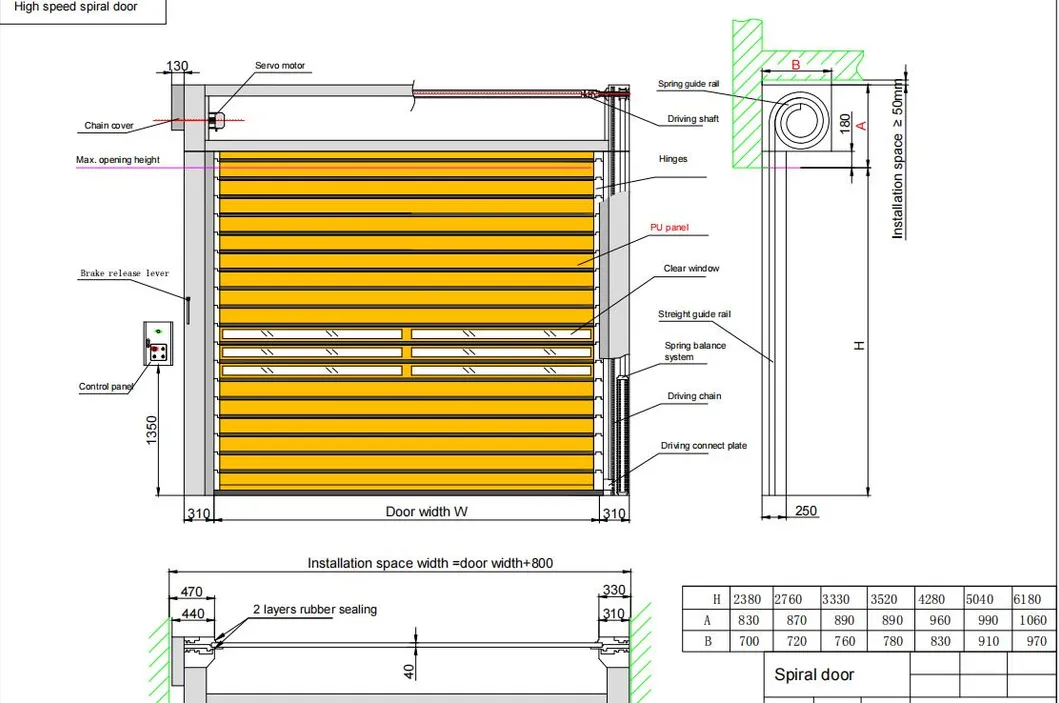

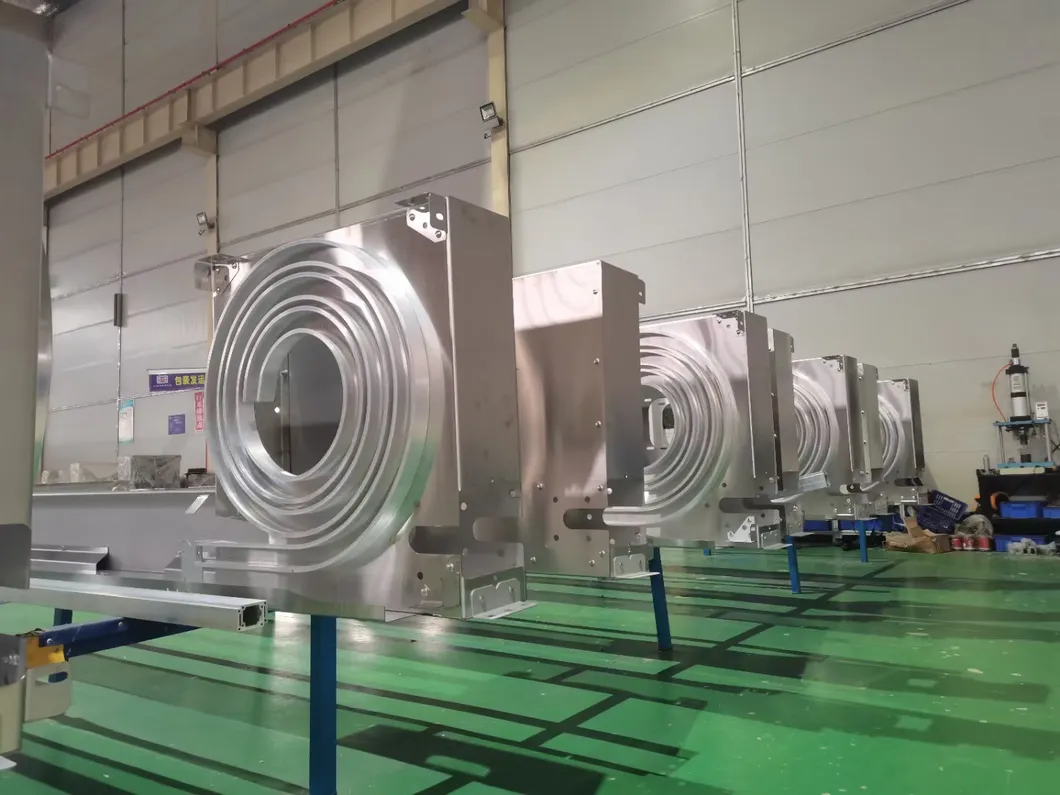

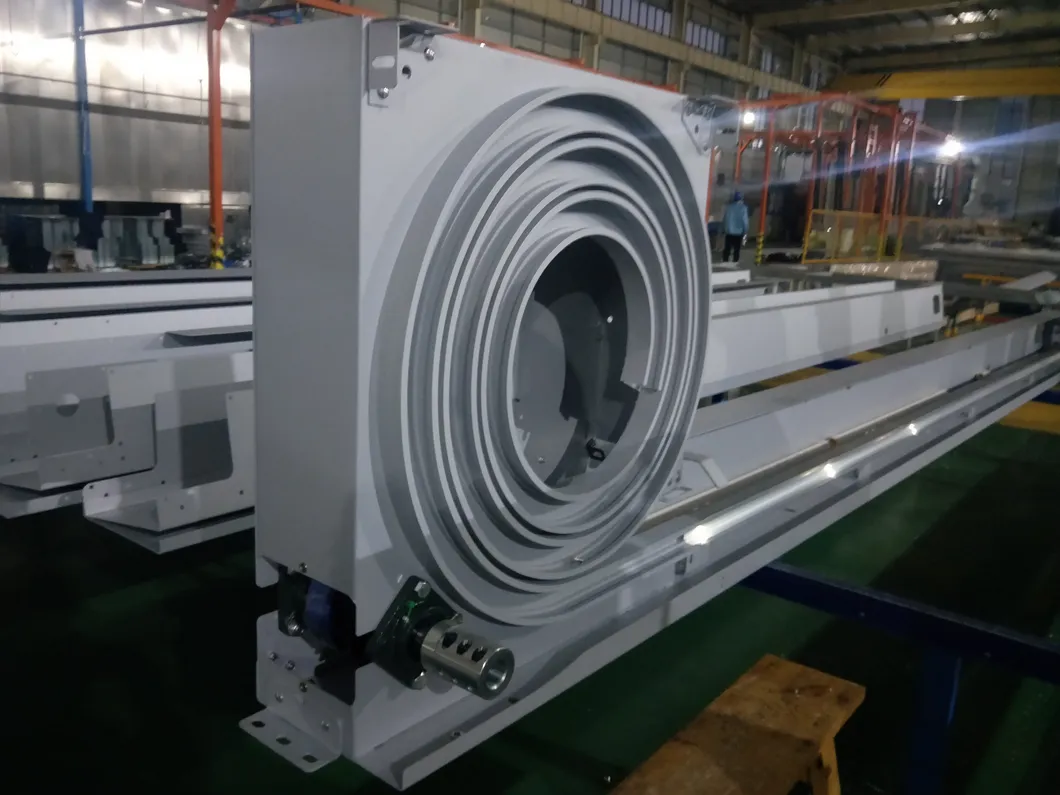

Technical Design & Rails
Accurate shop drawings show door dimensions clearly to ensure perfect installation.
Thermal Insulation & Safety
⚡

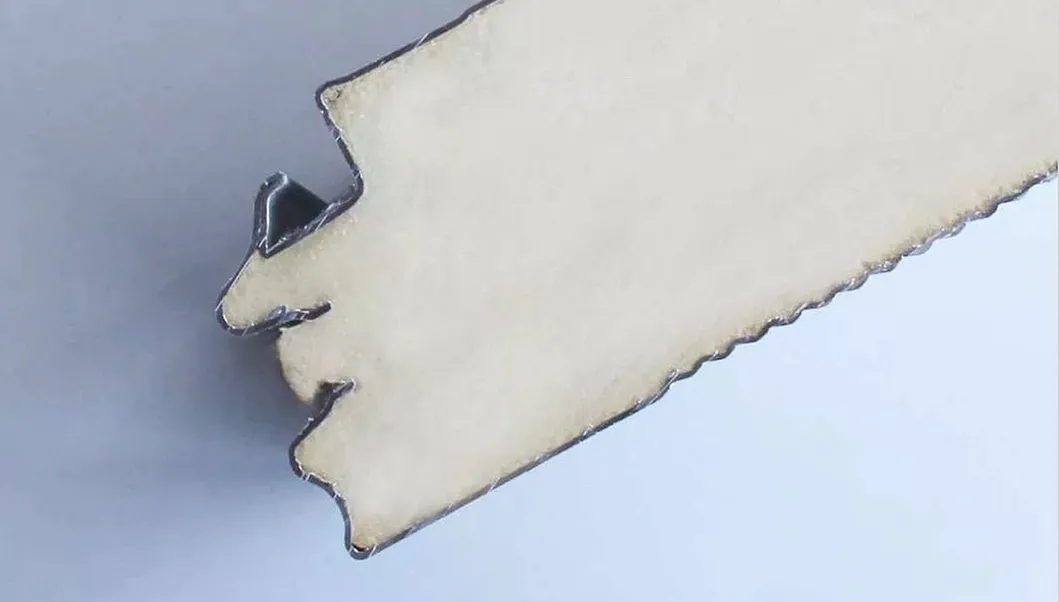

Excellent Insulation: Double layer aluminum panel filled with intermediate polyurethane foam. The middle broken bridge design increases heat preservation and saves energy.
🔧

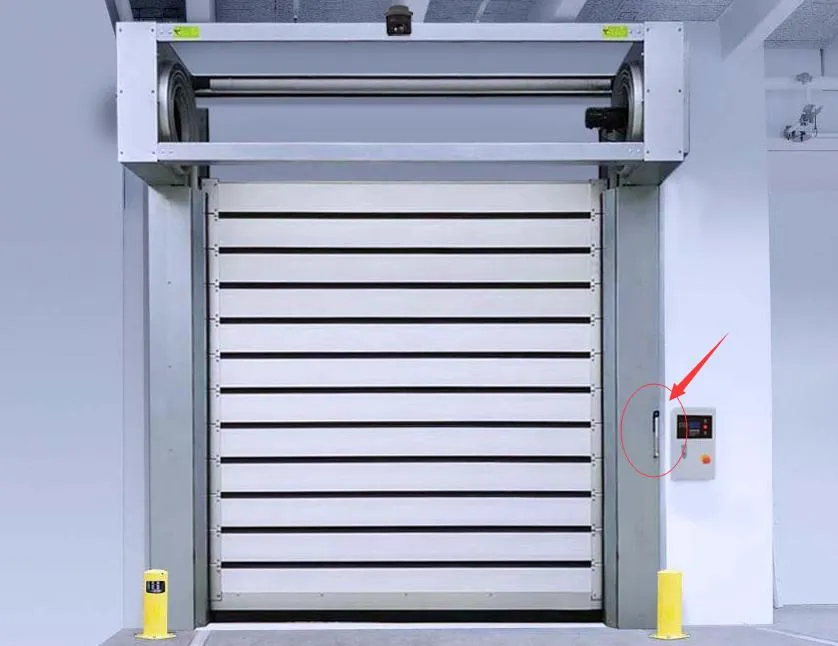

Emergency Manual Device: Balanced by a spring system, the door can be easily opened by hand during power failures or electrical faults.

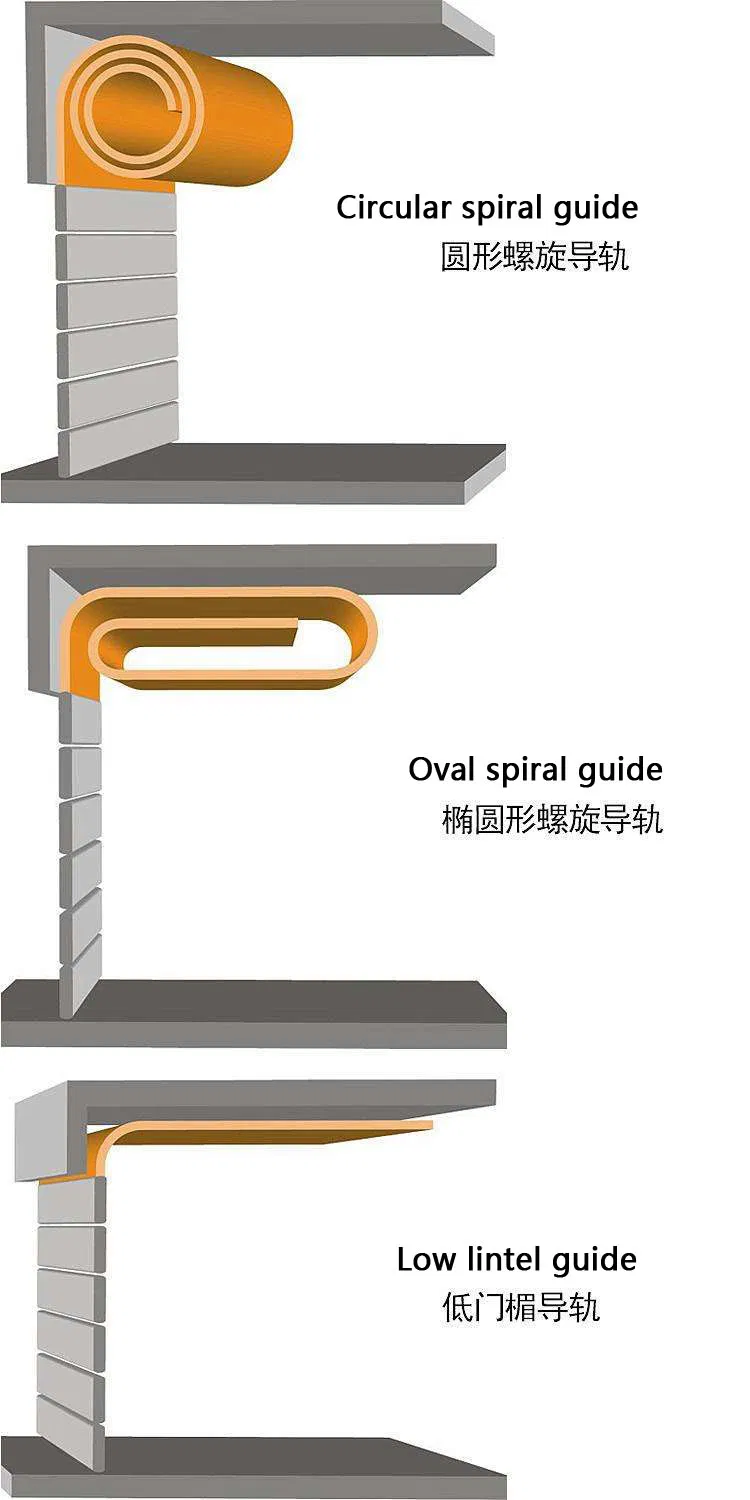

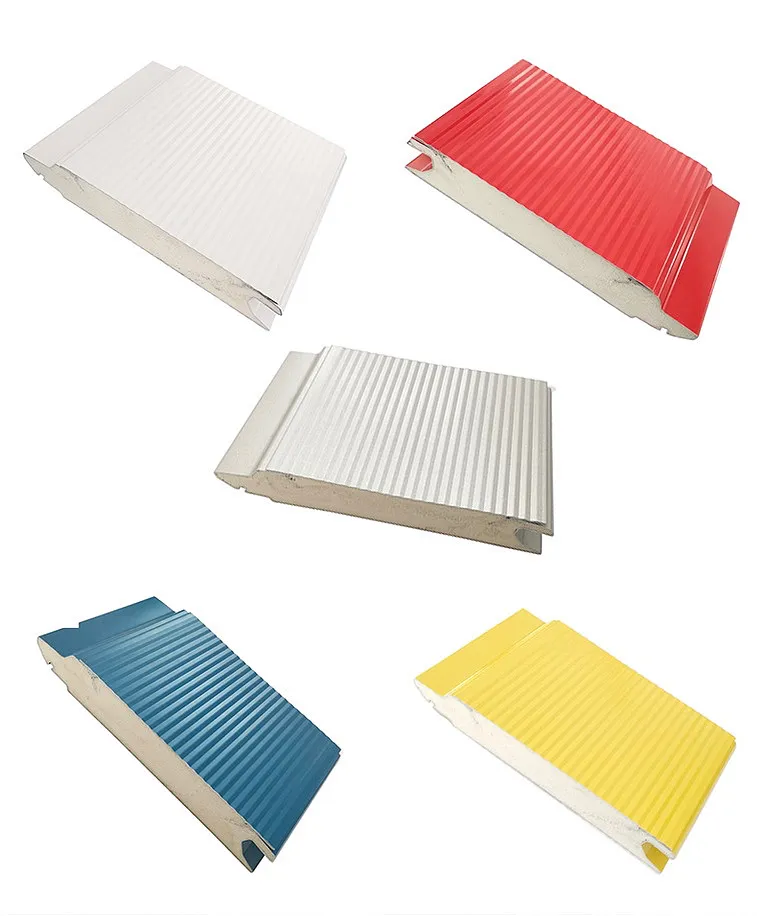

Customization & Space Saving

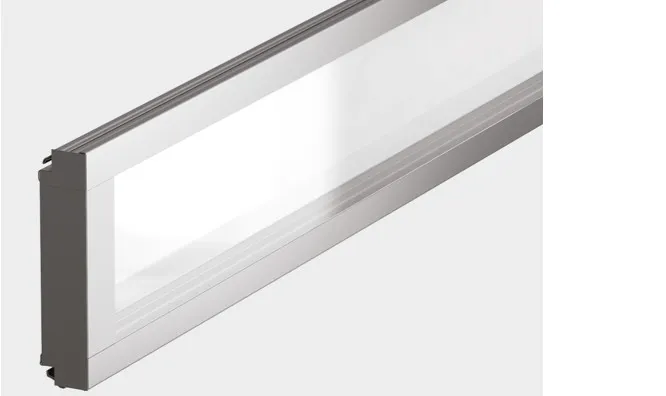

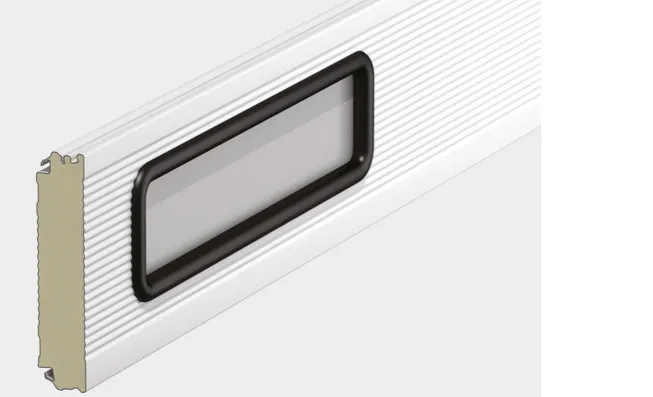

Windows & Operation Methods
⚙

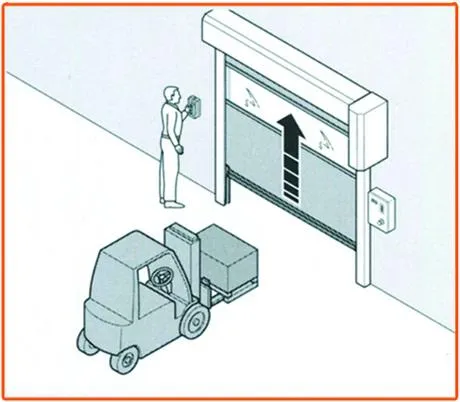

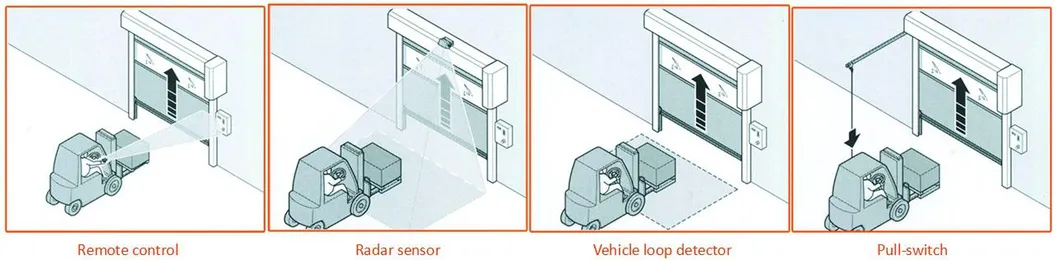

Operation Ways: Standard push button, Remote control, Radar Sensor, Vehicle loop detector, or Pull switch.
Advanced Control System

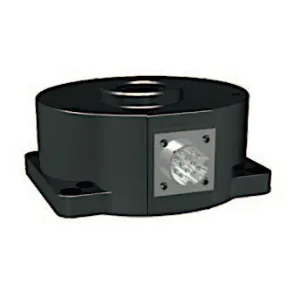

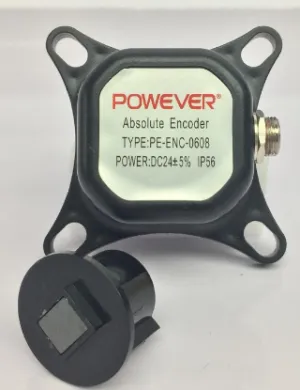

Equipped with an advanced AC Servo control system for high-speed running (up to 2.5m/s) and precise limit control using double encoders.

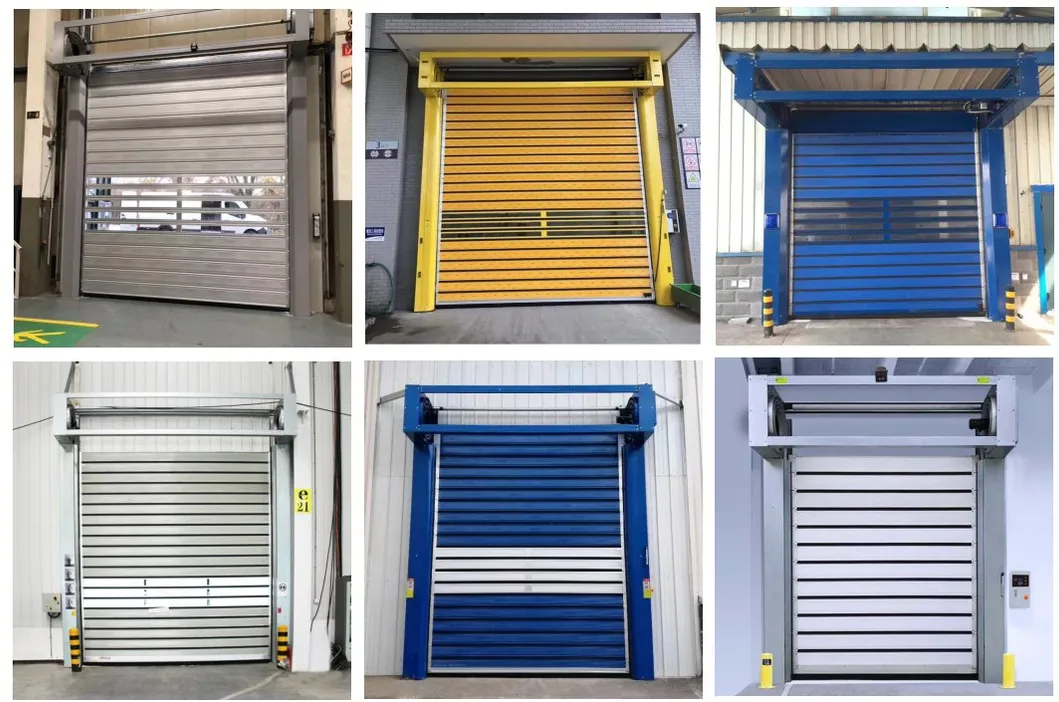

Project Gallery

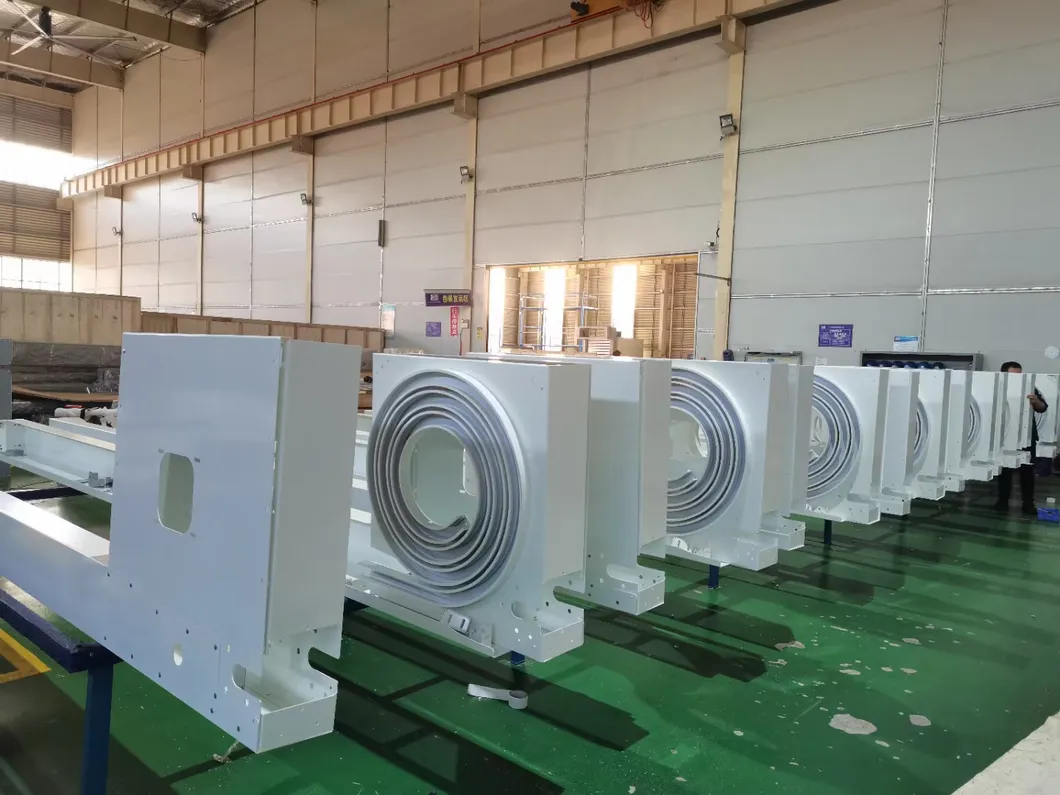

Quality Assurance
Frequently Asked Questions
Q: Why choose our high speed doors?
A: We offer the most cost-effective products with stable quality, professional technical support, and over 20 years of experience in production and customization.
Q: How do we get started on a project?
A: We only need your basic background information and project site details. If drawings are available, we can provide a complete solution based on your site plan.
Q: What about the installation process?
A: We provide clear installation manuals, videos, and precaution documents. For complex large projects, technical guidance is available to ensure smooth setup.
Q: Which kinds of payment do you accept?
A: We usually accept T/T in advance, L/C for large sums, and Western Union. Other terms can be discussed upon request.
Q: How long is the lead time for production?
A: Standard production typically takes 7-10 days depending on the customization requirements.
Q: How is the after-sale service handled?
A: Spare parts can be delivered within 24 hours via international couriers like DHL, UPS, or TNT to minimize any downtime.
