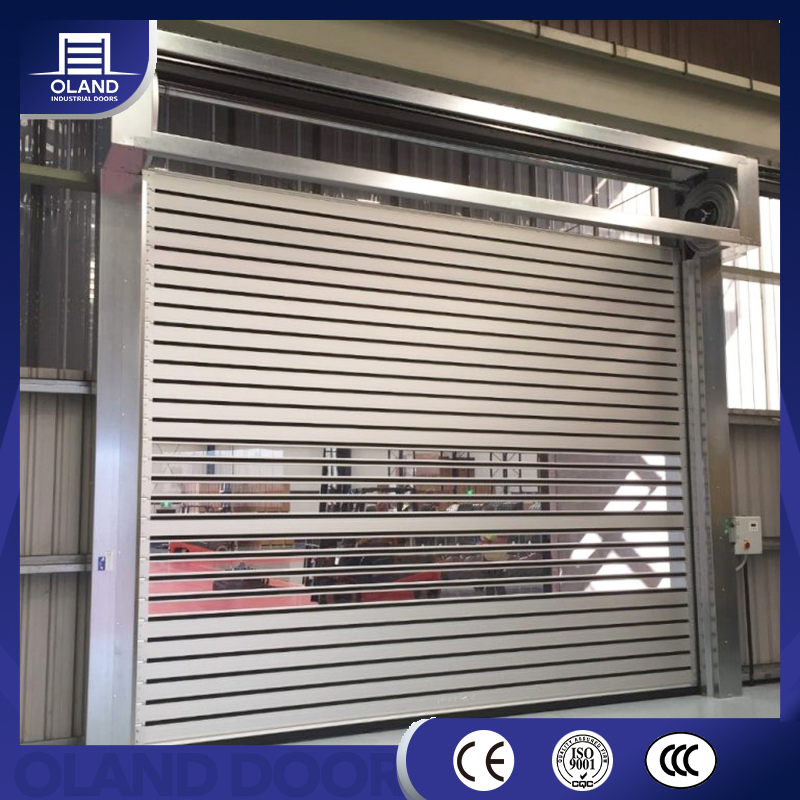

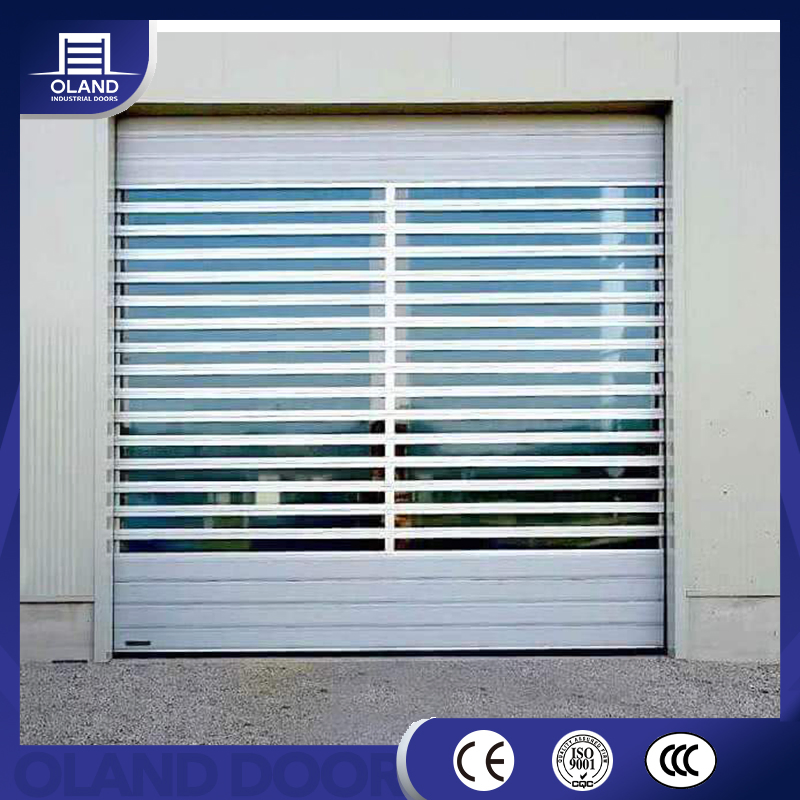

Factory Pass Industrial Spiral High Speed Hard Insulated Durable Aluminum Fast Roller Door Rapid Efficient Rolling Shutter Doors for Industrial or Warehouse

Customization: Available
After-sales Service: Online Technical Support/Parts Replacement
Warranty: 1.5 Years

Product Description

🚀 Basic Information
Model NO.
Aluminum alloy spiral high speed door
Material
Aluminum Alloy
Type
Rolling
Open Style
Rolling
Opening Type
With Remote Control
Special Function
Security
Certification
ISO9001, CE
Position
Industrial
📦 Product Description
Aluminum alloy spiral high speed door adopts high-strength aluminum alloy door plate, with sturdy structure, beautiful appearance, and multiple properties such as high-speed opening and closing, heat insulation and sound insulation, and wind and dust resistance. The door body is operated by spiral guide rail system without curtain friction, which improves the operation stability and service life. Built-in balancing system and clutch device can be easily opened manually in case of power failure to protect emergency access. Widely used in logistics and warehousing, intelligent manufacturing, automobile workshop and other industrial places with high requirements for speed and sealing.

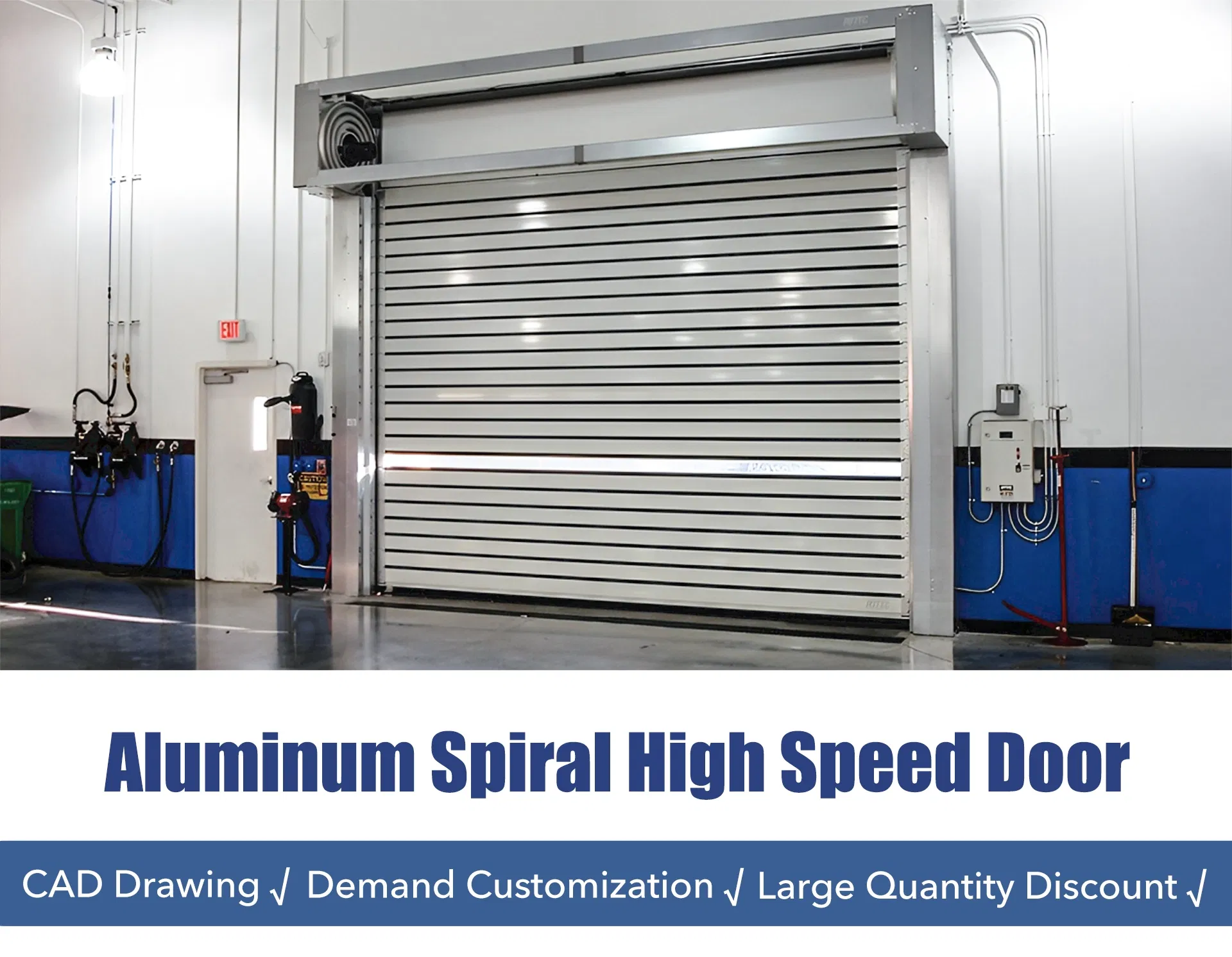

Spiral High Speed Door Overview
📊 Technical Data
Parameter Specification
Maximum sizewidth*height 8000mm*8000mm
PanelAluminum alloy+PU foam
Power supply220±10%V, 50/60Hz. Output power 0.75-1.5KW
Max speedOpen 2.0m/s, close 1.0m/s
Protection levelIP55
Control systemServo type
Wind resistanceBeaufort scale 12 (35m/s)
Sound insulation25DB
K Value0.4W/m²·K
ColorWhite, grey, blue, yellow, red, customized
⚙️ Structure Diagram

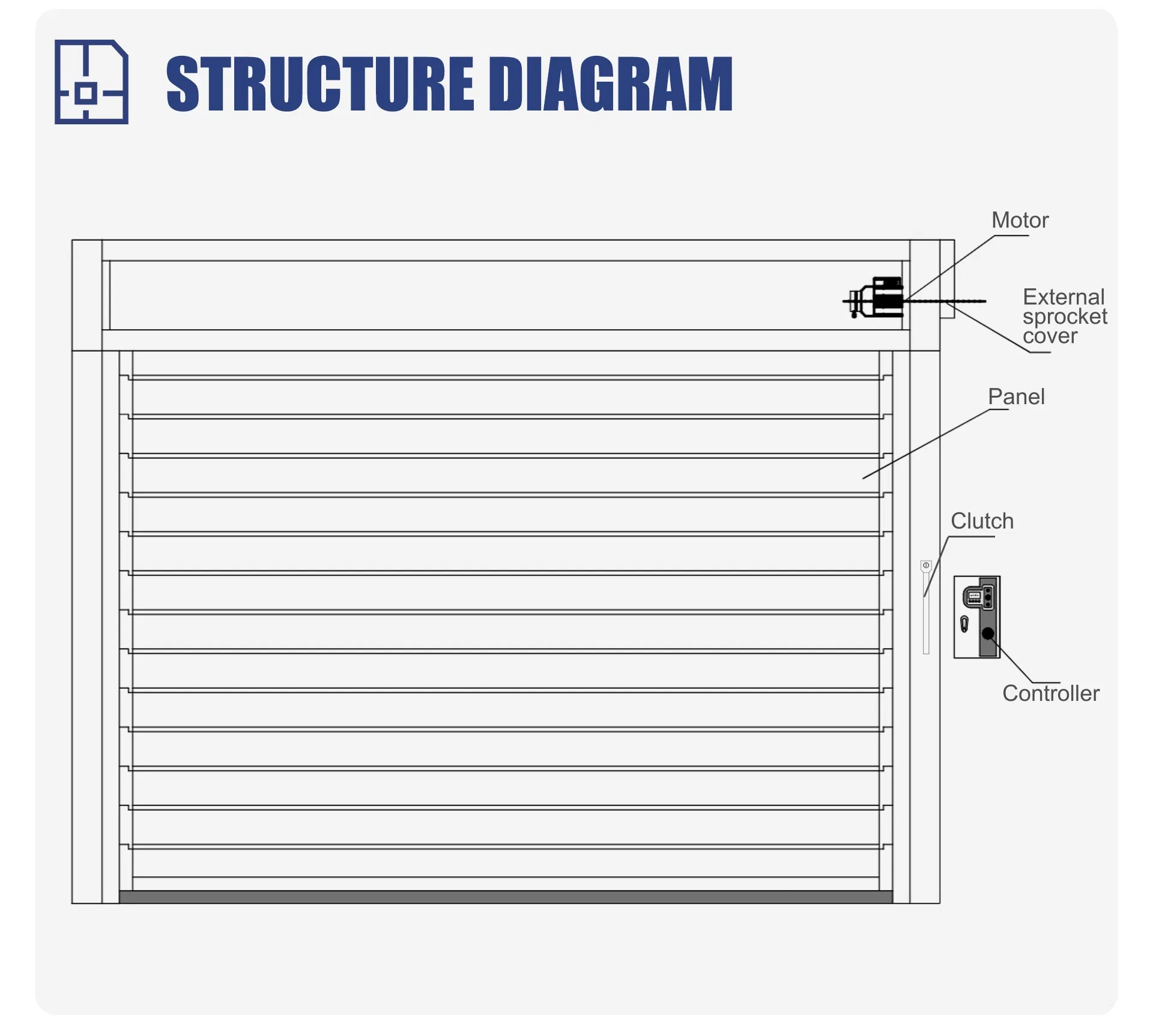

Structure Diagram of High Speed Door
Standard version of the aluminum spiral high speed door structure and accessories. Customizable options are available to meet specific industrial requirements.
🔍 Product Details

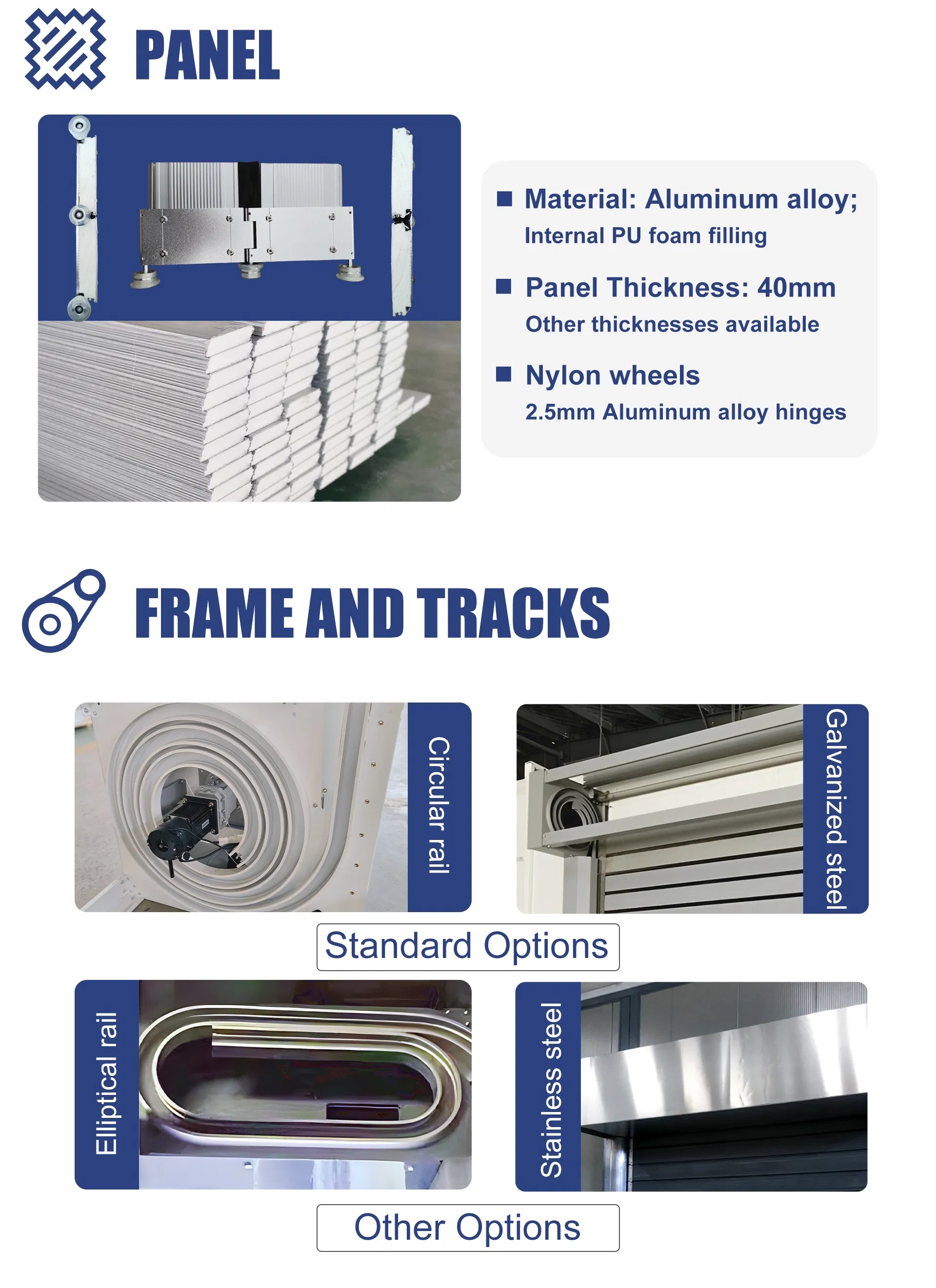

Detail 1

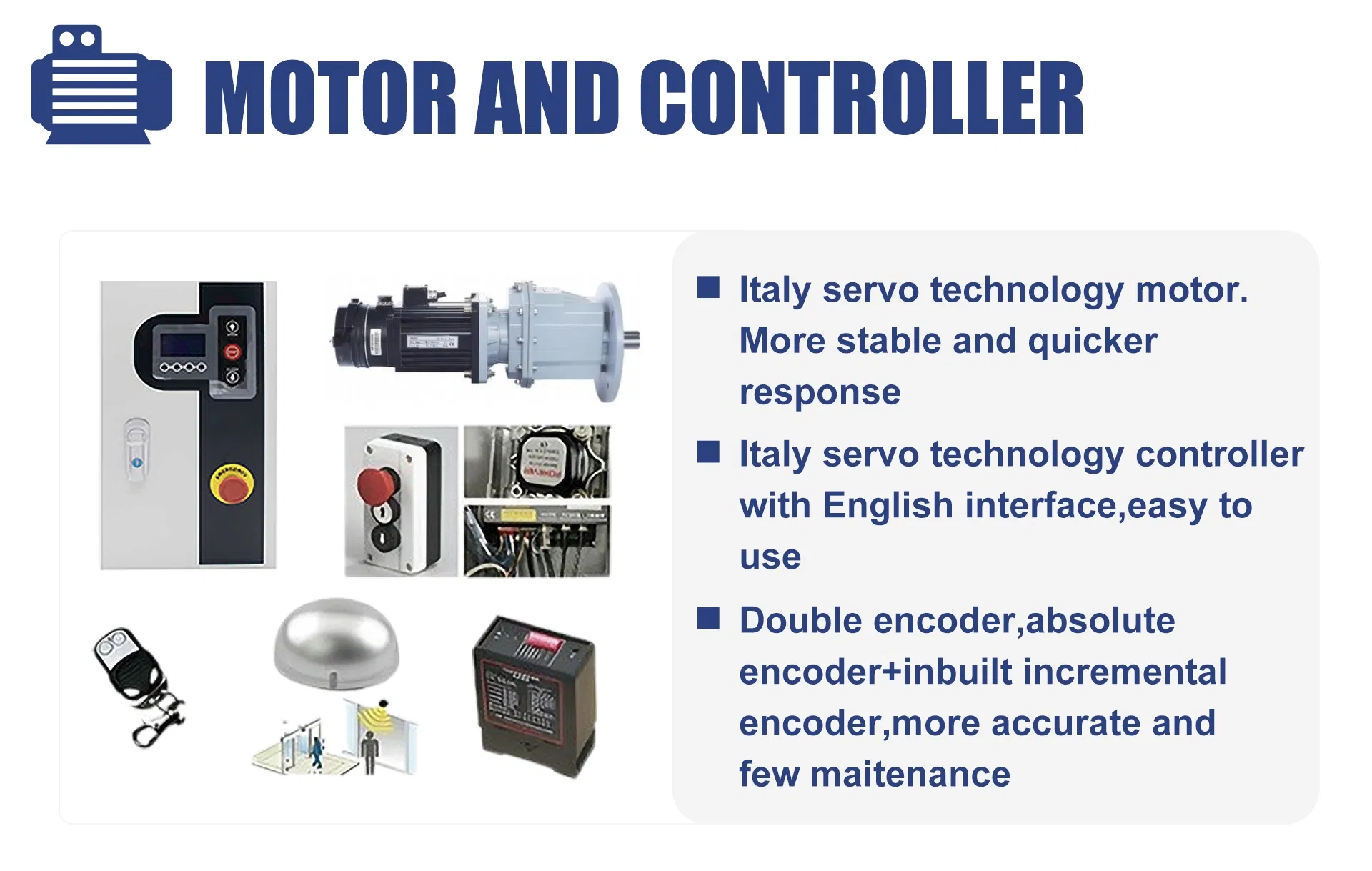

Detail 2

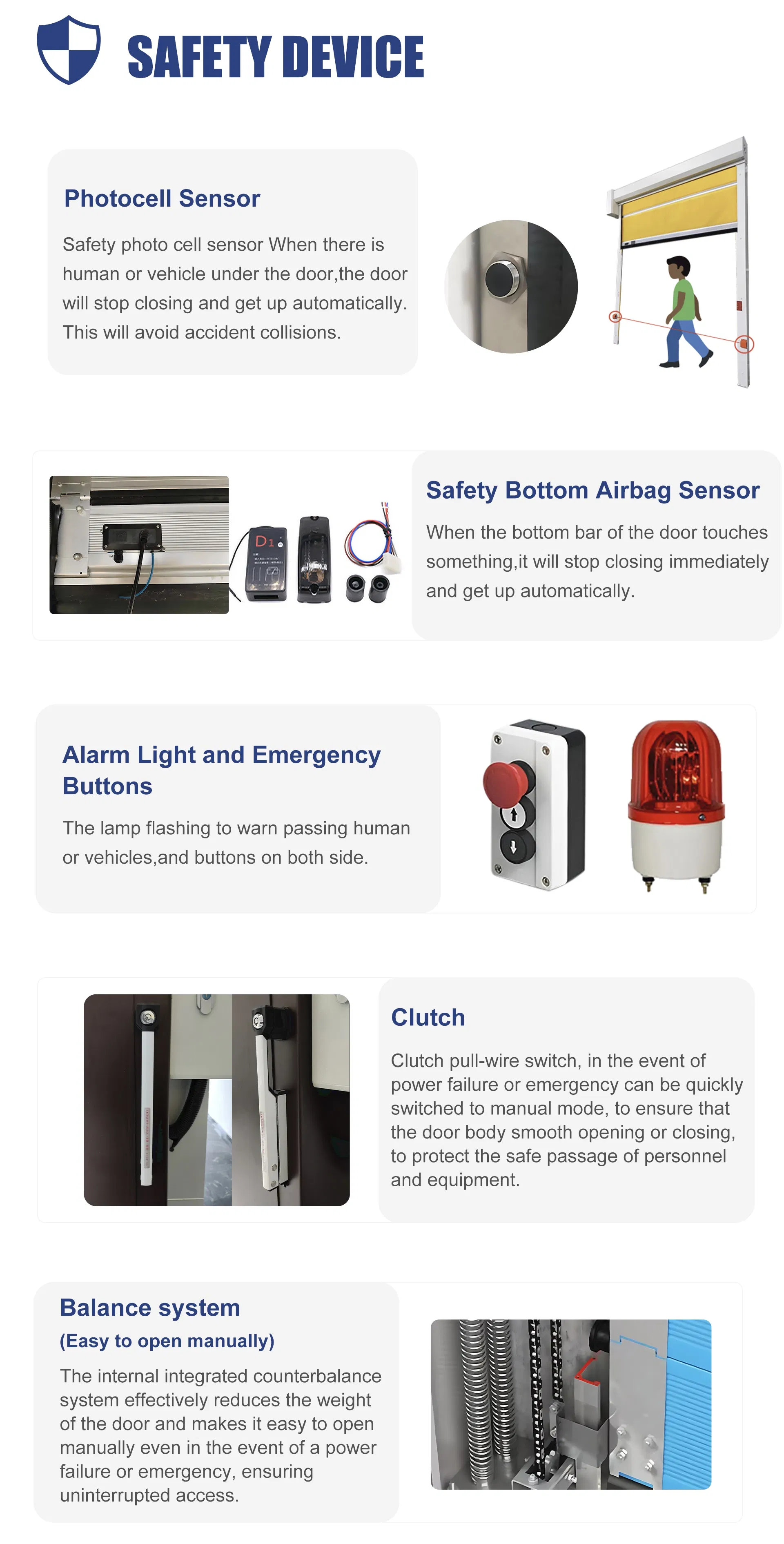

Detail 3

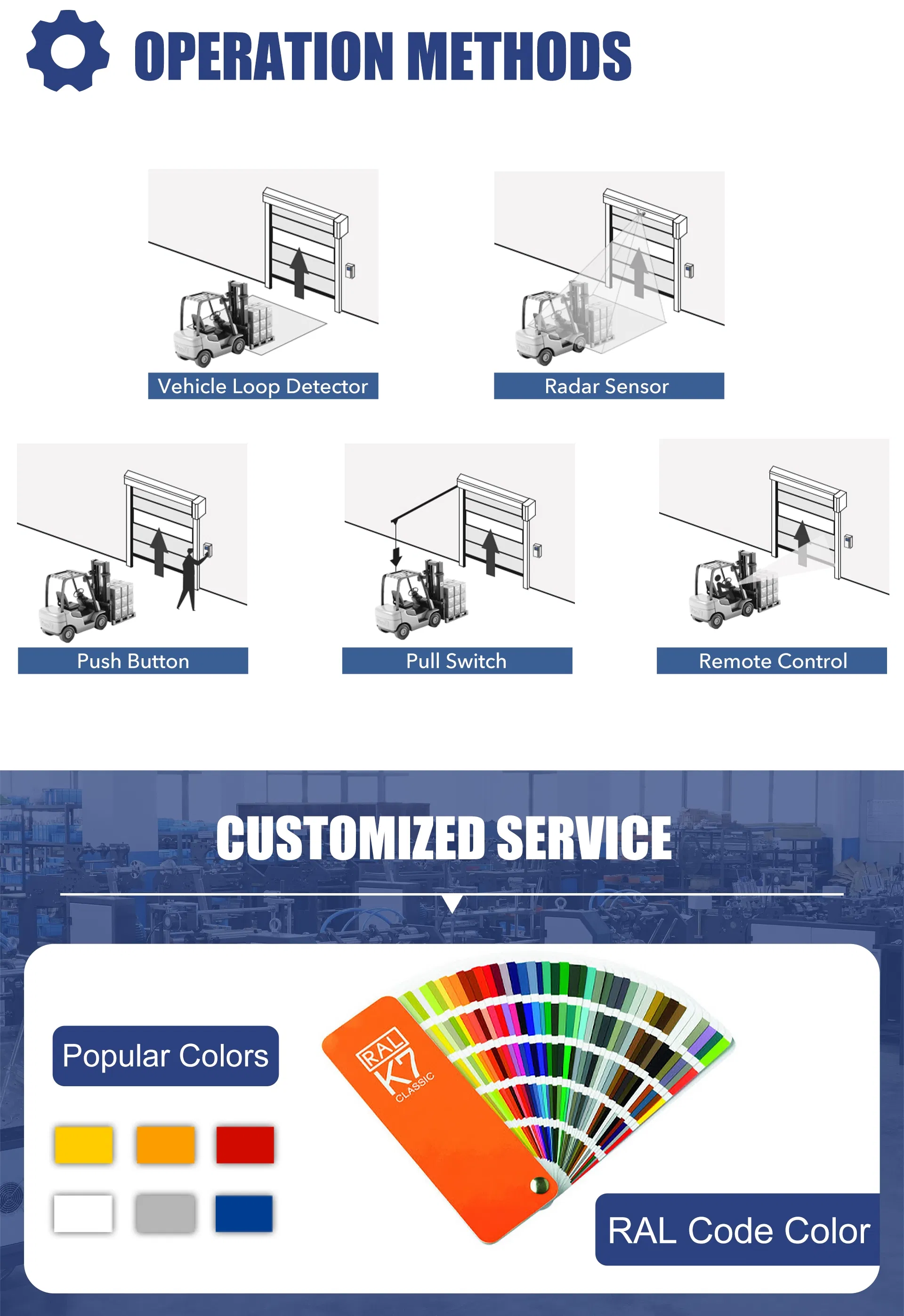

Detail 4
🏭 Facility & Production
Production Facility
Manufacturing
Workshop
Storage
❓ Frequently Asked Questions
Q: What is the Minimum Order Quantity (MOQ)? A: There is no limit. We accept orders starting from 1 set.
Q: What is the typical delivery time for an order? A: The delivery time is approximately 15-30 days depending on the customization requirements.
Q: How is the product packaged for international shipping? A: We use high-quality Polywood boxes to ensure the door panels and components are protected during transit.
Q: Is it difficult to install the spiral high-speed door? A: No, it is designed for easy installation. We provide a comprehensive manual and installation videos. Technical support is also available remotely.
Q: What payment terms do you accept? A: We typically accept T/T, L/C, Western Union, and Credit Cards. Other terms can be discussed upon request.
Q: How can I get an accurate price quote? A: Please provide the exact dimensions (width and height) and the quantity required. We will provide a detailed quotation based on your specs.
